VALA R1 8FT 2.6″ Up/Down Light WT

  • black - no background_2x
  • fcc-logo-black-2020-large
  • ChatGPT Image Apr 14, 2025, 05_10_41 PM
  • ChatGPT Image Apr 11, 2025, 02_51_07 PM
  • ChatGPT Image Apr 11, 2025, 02_56_18 PM

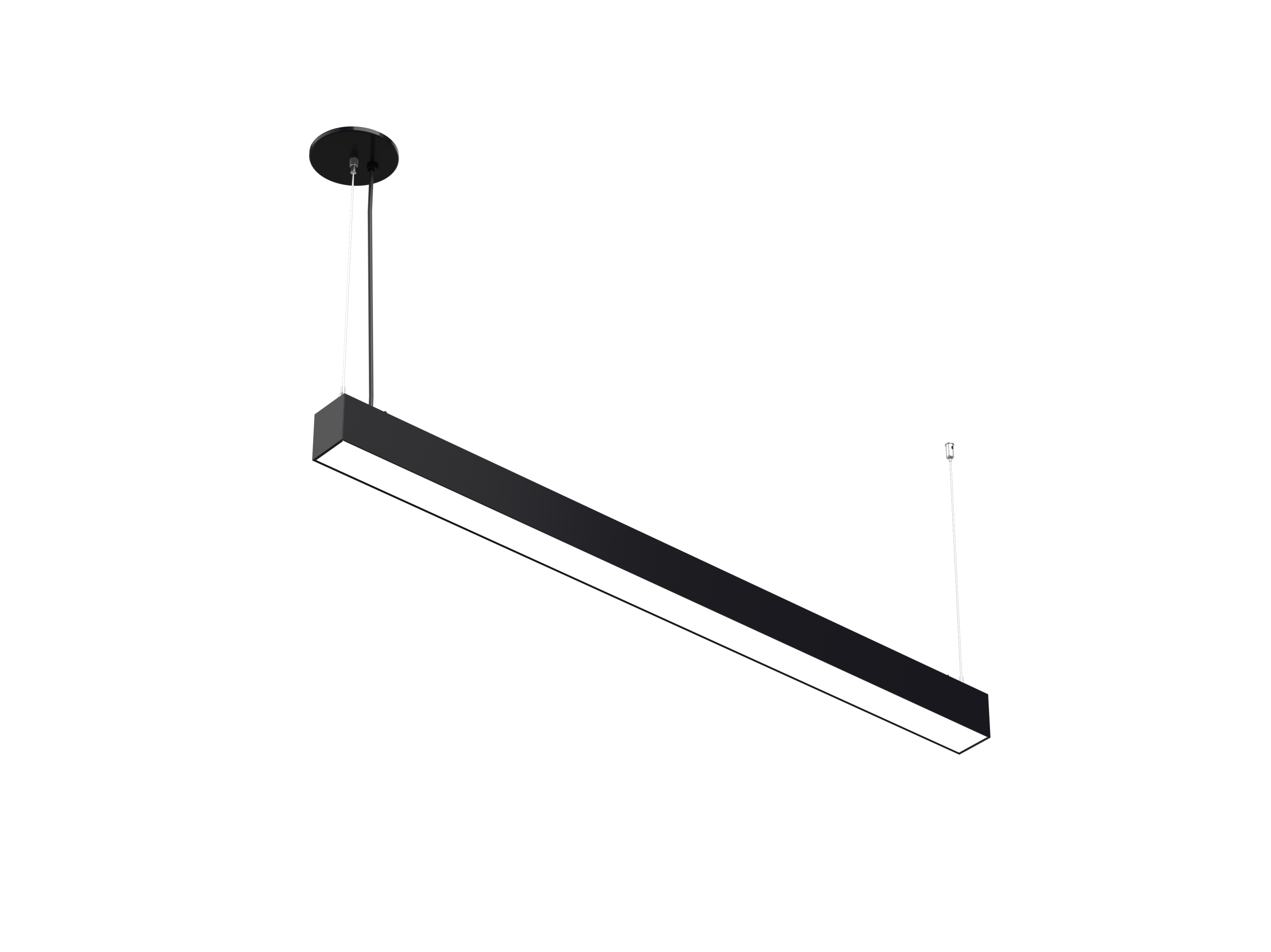

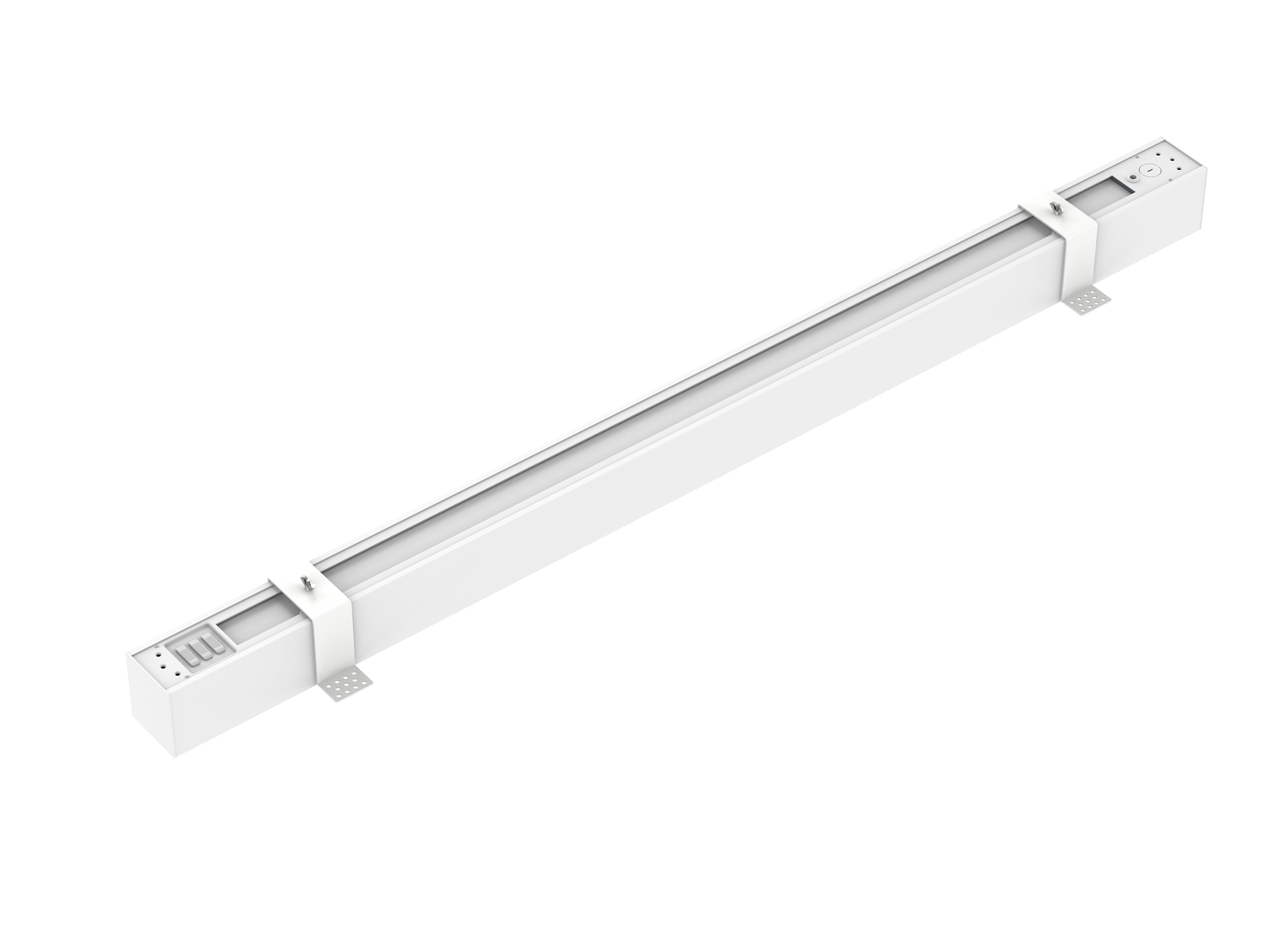

The VALA R1 2.6’’ Slim Architectural Linear Pendant Mount is an ultra-sleek lighting solution that is fully customizable to meet the unique needs of each application. The lengths come in 4 ft and 8 ft with selectable color temperature, wattage, and distributions. The minimalist and elegant aesthetic paired with brilliant illumination and even distribution will elevate your space in a range of applications, including offices, lobbies, and retail spaces. This versatile architectural luminaire possesses unlimited design potential for endless design pattern possibilities

  • Multiple lumen packages
  • CCT selectable 3000K, 3500K, 4000K, 5000K, and 6500K
  • 4ft and 8ft housing sizes
  • Universal 120-277V input voltage

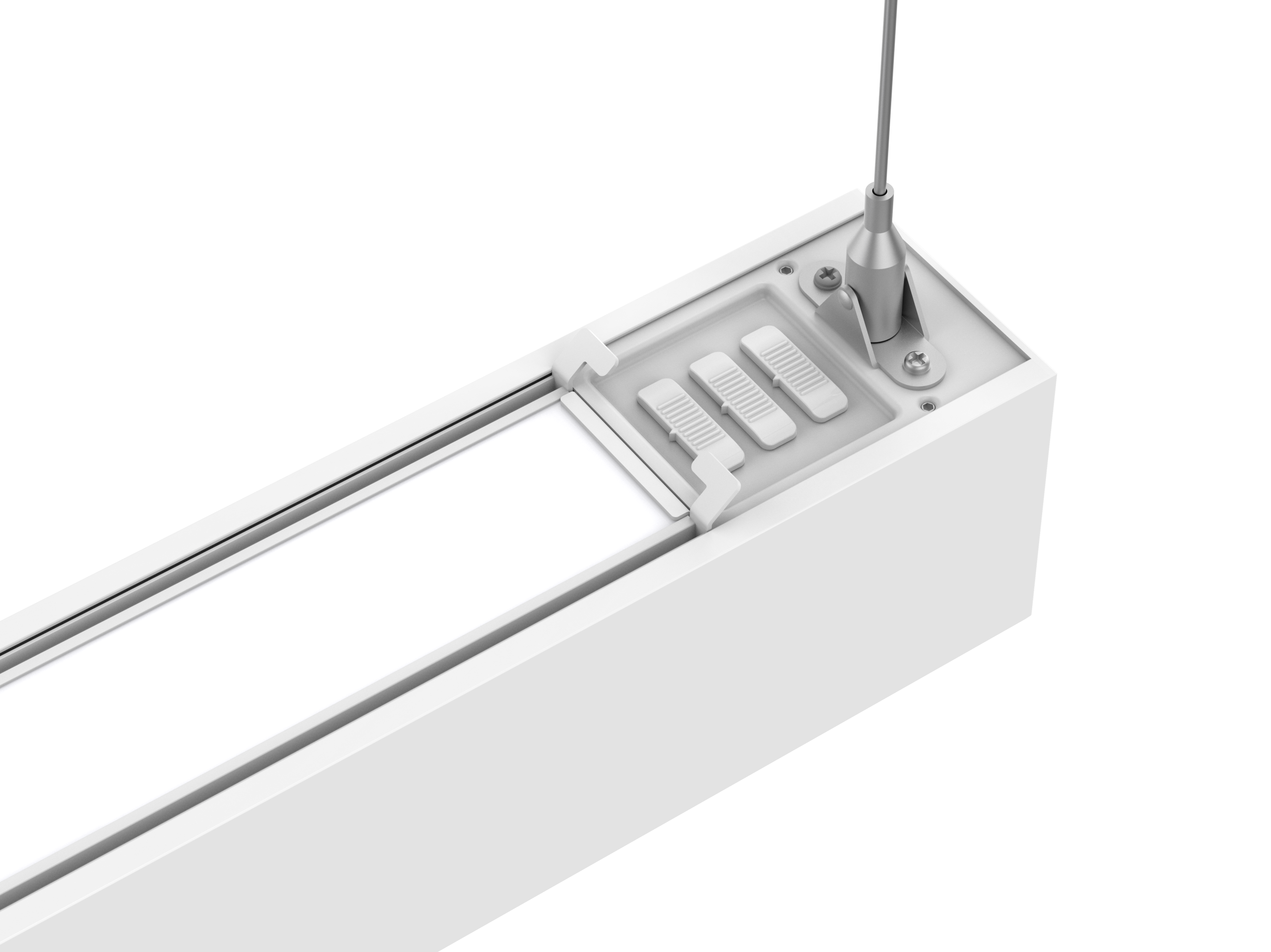

  • Pendant, Surface, Wall mount, Recessed mount
  • Suitable for damp locations

Document

VALA-R1-Selectable-Architectural-Linear-Light.pdf

Download

Specifications

Series
VALA R1 2.6″ Architectural Linear Light
Lens
Flat lens
Wattage
10W per ft, selectable 80W/70W/60W/50W/40W, 50W/ 40W/35W/30W/25W
Accessories
Motion sensor, Emergency backup battery
Lumen
500 lm  / 750 lm / 1000 lm per ft
Voltage Rating
Standard 120-277V,  0 – 10V Dimming down to 10%.
Distribution
100% down light, 70% down / 30% up, 50% down / 50% up,
30% down / 70% up, 100% down light
Connected
120V continuous run up to 40FT

277V continuous run up to 100FT

CCT
Selectable 3000K, 3500K, 4000K, 5000K, 6500K

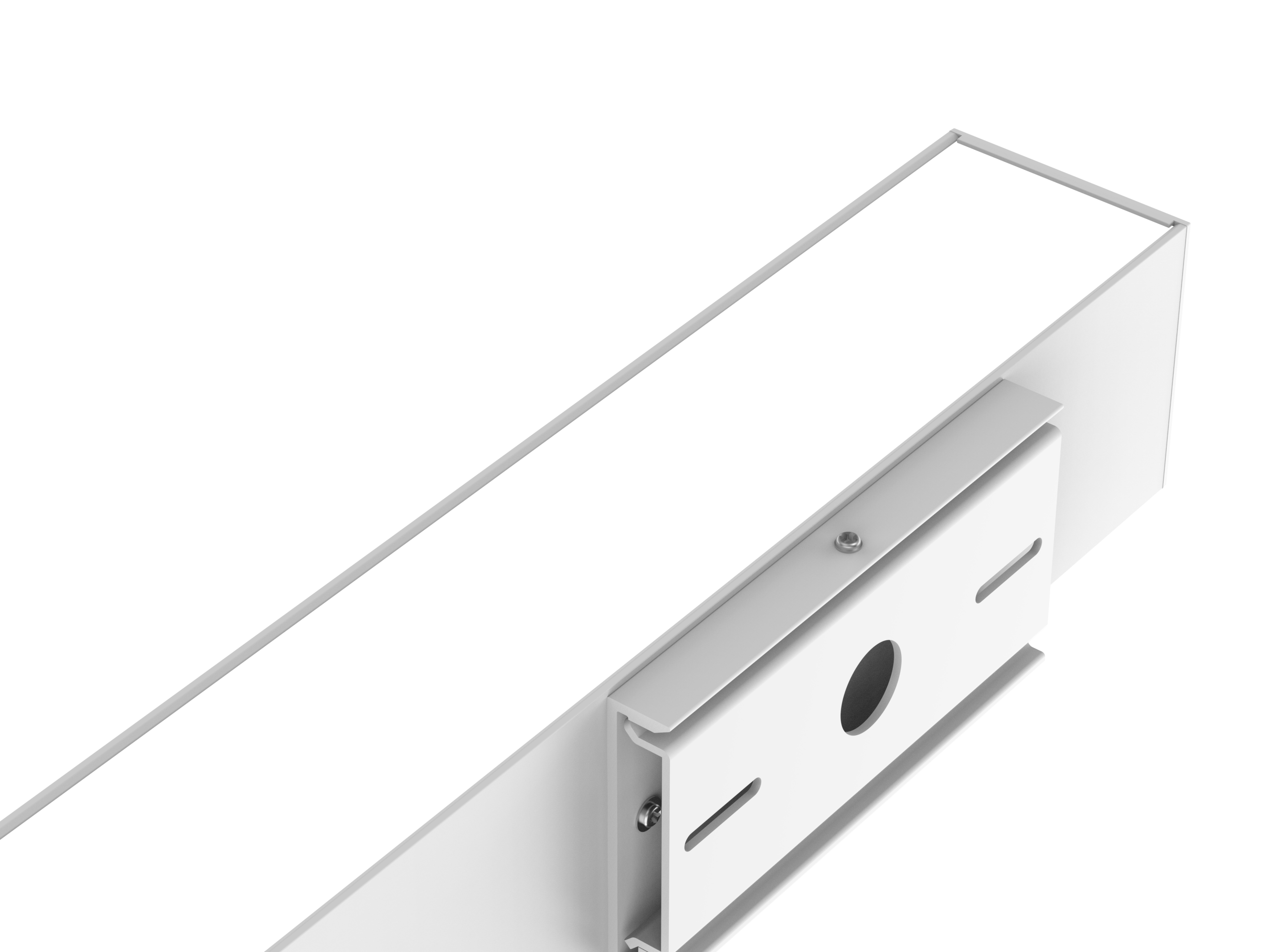

Mounting
Pendant, Surface, Wall mount
Size
4ft, 8ft
Finish Color
White and Black powder coat finish
CRI
Above 80+
Listings
UL Listed for damp locations
Housing
Anodized Aluminum
Warranty
5 Year limited warranty

SPEC SHEET

Photometry

Product IES Files

06/02/2024

06/02/2024

06/02/2024

06/02/2024

06/02/2024

06/02/2024
