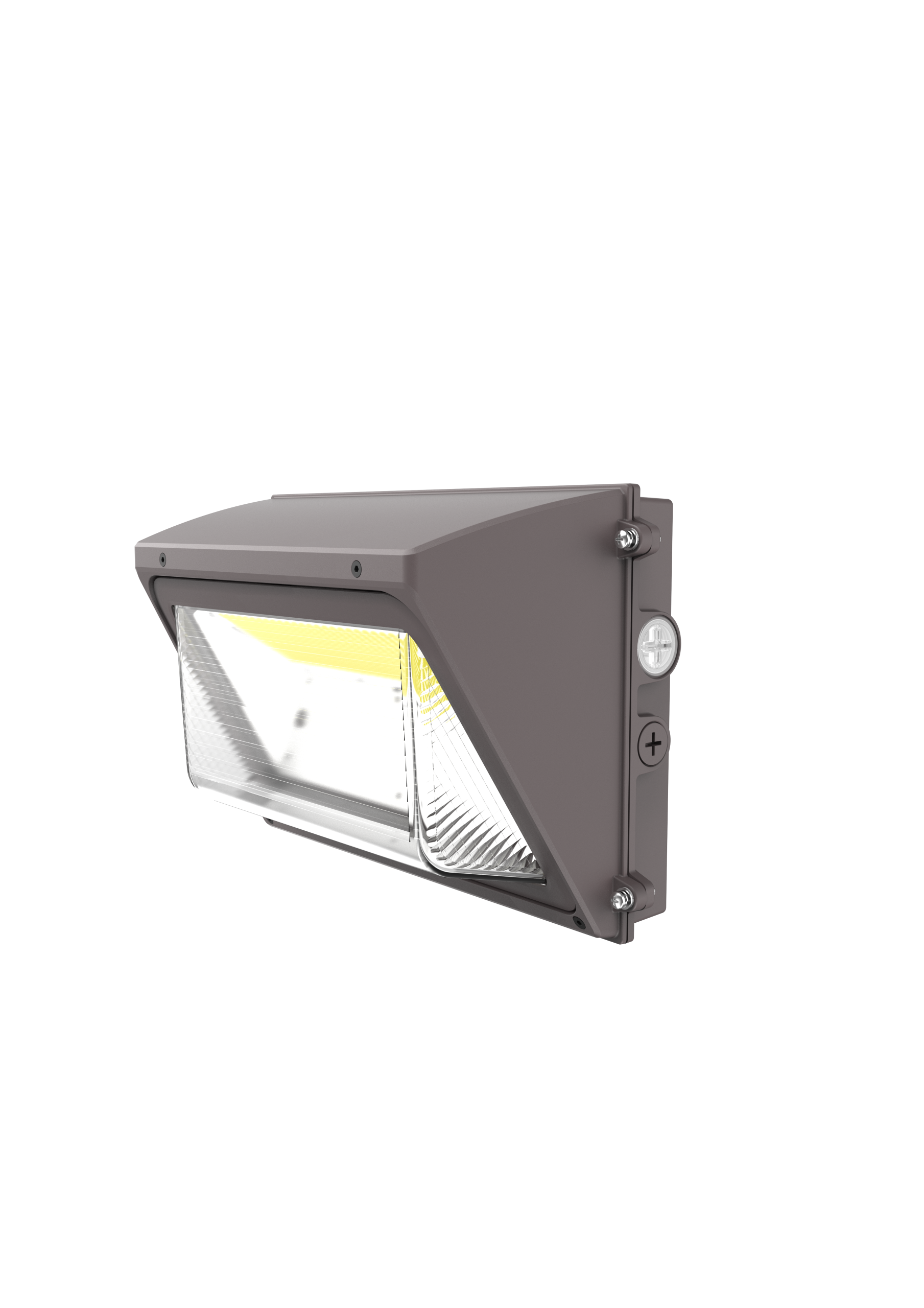

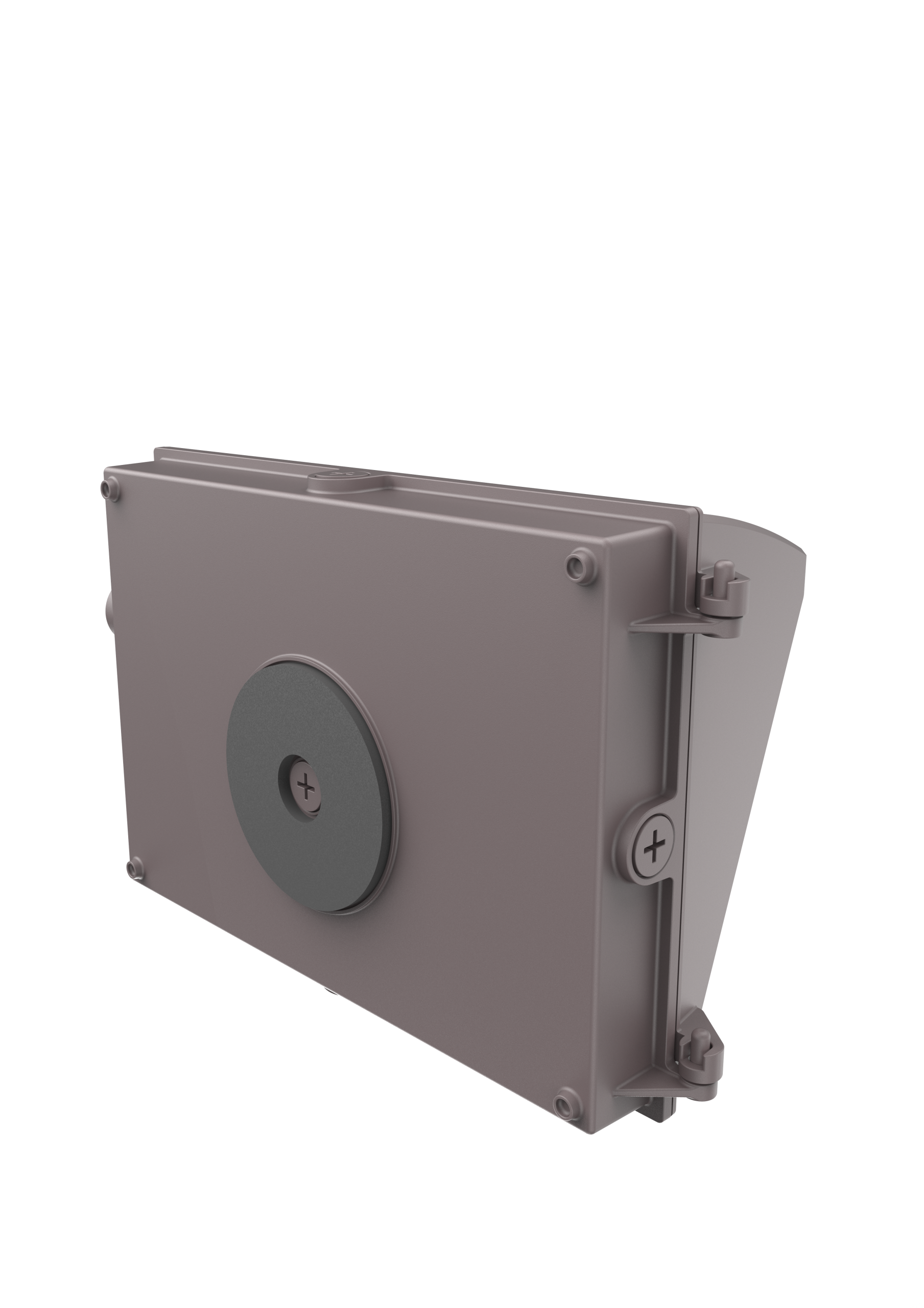

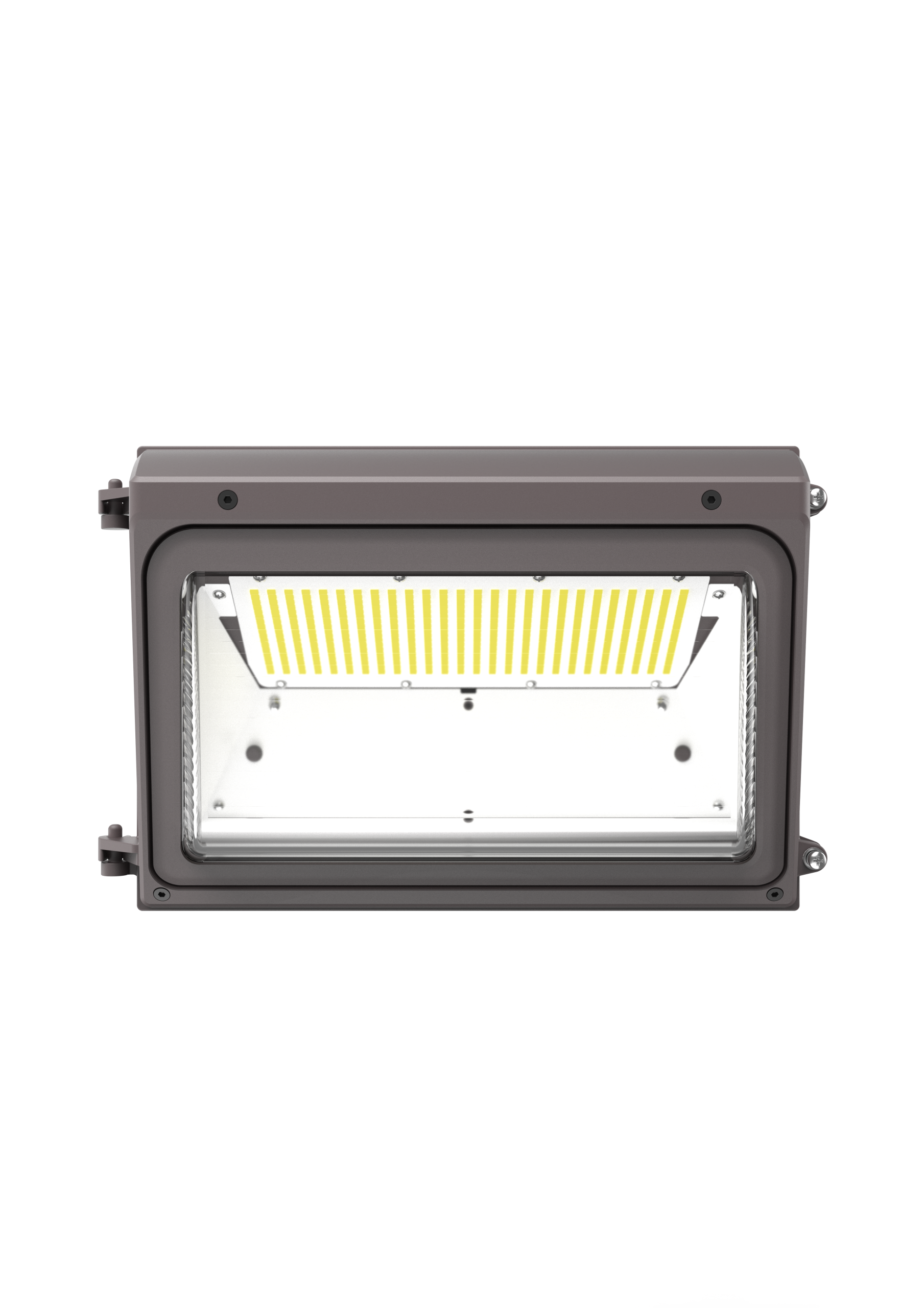

WPL1 Selectable Semi Cutoff Wallpack Light 80W

  • black - no background_2x
  • fcc-logo-black-2020-large
  • ChatGPT Image Apr 14, 2025, 05_10_41 PM
  • ChatGPT Image Apr 14, 2025, 05_17_46 PM
  • ChatGPT Image Apr 14, 2025, 05_21_43 PM
  • ChatGPT Image Apr 14, 2025, 05_23_01 PM

The WPL1 Selectable Wall Pack offers maximum light output for general-purpose areas and security lighting in a classic design. The luminaire efficiently delivers lumens and consumes less energy than traditional wall mount technologies. Security Lighting, Perimeter Lighting, Building Entrances, Walkways, electronic processing workshops, storage warehouses, steel mills, gas stations, toll booths, waiting rooms, the platforms of railway stations, indoor stadiums, etc.

  • Lumen range from 6,000 – 18,000 lumens
  • CCT selectable 3000K, 4000K, and 5000K
  • -40°F to 113°F operating range
  • Universal 120-277V input voltage
  • Dark bronze polyester powder
  • Five-year warranty

Document

WPL1-Semi-Cutoff-Wall-Pack-Light.pdf

Download

WPL1-Installation-Guide.pdf

Download

Specifications

Series    WPL1 selectable wall pack light Voltage Rating    Standard 120-277V
Wattage 80W and 120W Operating Temp -40°F to 113°F (-40°C to 45°C)
Lumen From 6,000 – 18,000 lm Finish Color  Dark bronze polyester powder
CCT  Selectable 3000K, 4000K, 5000K IP Rating  IP65
CRI Above 70+ Listings    UL, FCC
Housing Die-cast aluminum housing Warranty  5 Year limited warranty
Accessories  Mini photocell, Emergency backup battery
