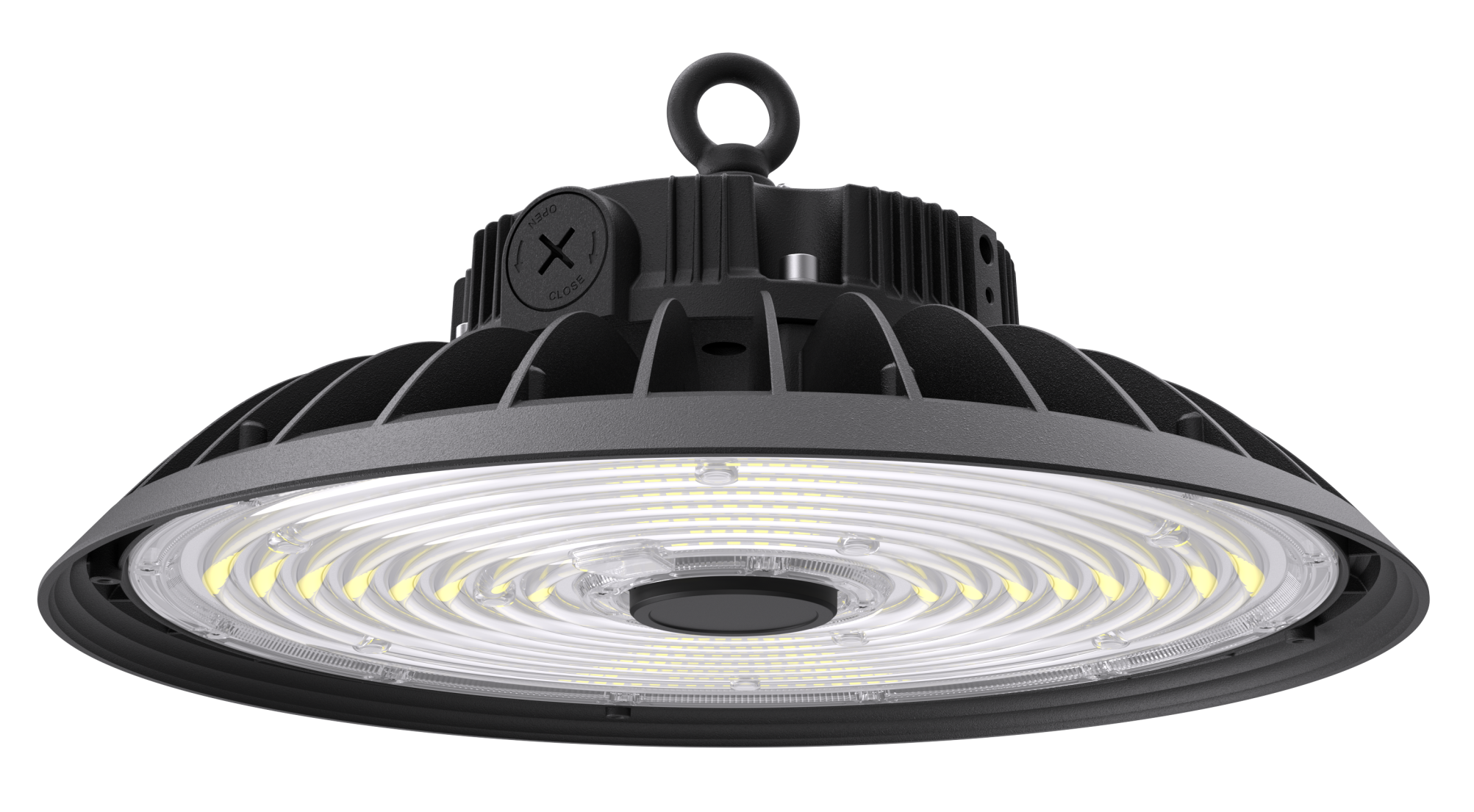

UHB1 high bay is a contractor experience LED high bay – designed to save you money, save you time, and install quickly. 3 selectable lumen outputs for different ceiling heights and 3 selectable CCT color outputs. Lightweight for easy installation with a durable J-Hook – engineered with your experience first. Controls are ready with plug-in sensors to make your safety and security a top priority.

  • Lumen range from 17,000 – 51,000 lumens
  • CCT selectable 4000K, 5000K, and 5700K
  • -40°F to 113°F operating range.
  • Universal 120-277V / 277-480V input voltage
  • External Motion Sensor / Emergency Battery
  • Five-year warranty

Document

UHB1-Series-Selectable-High-Bay-Light.pdf

Download

Specifications

Series    UHB1 UFO High Bay Light Voltage Rating    Standard 120-277V / 277-480V

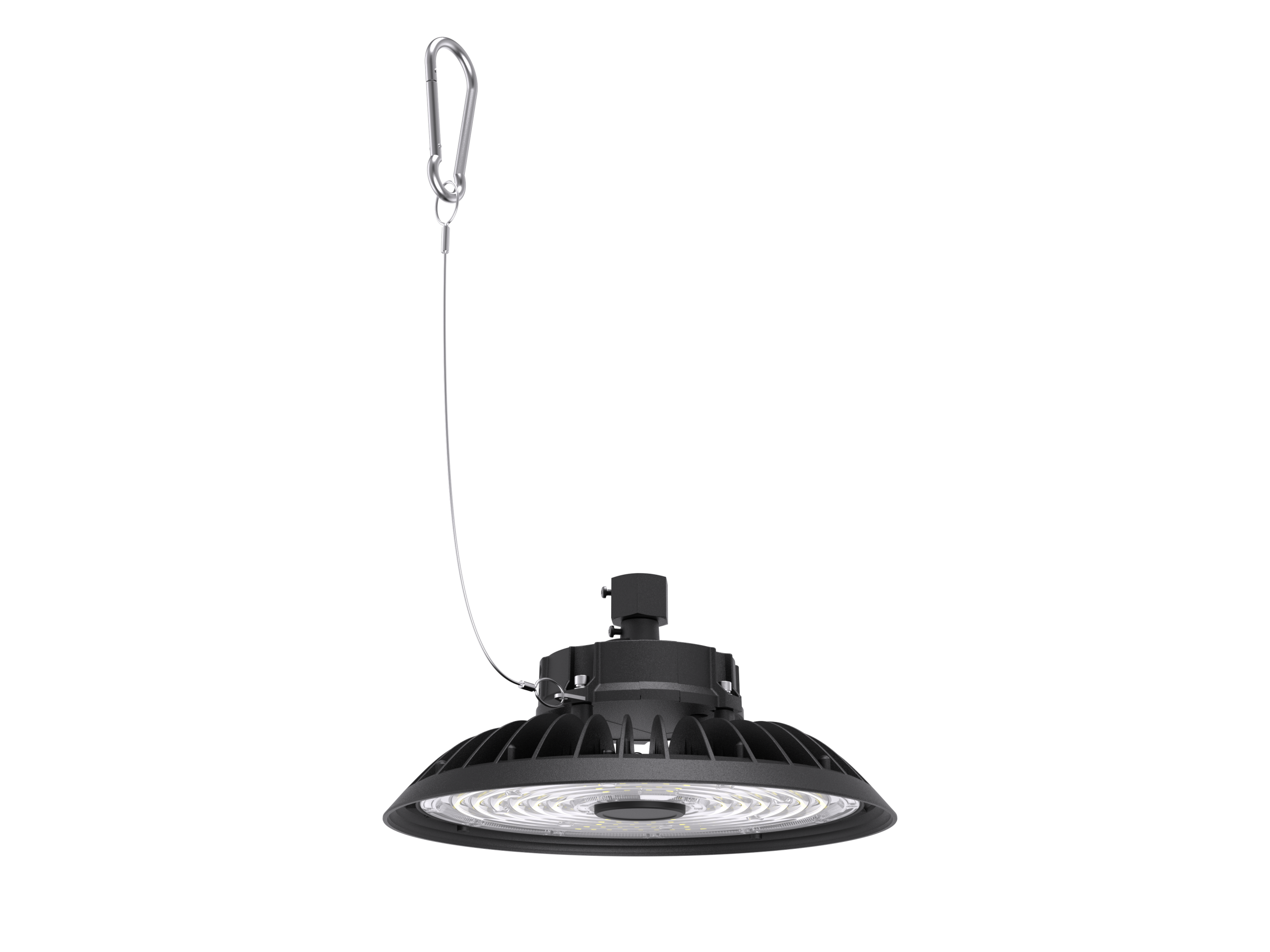

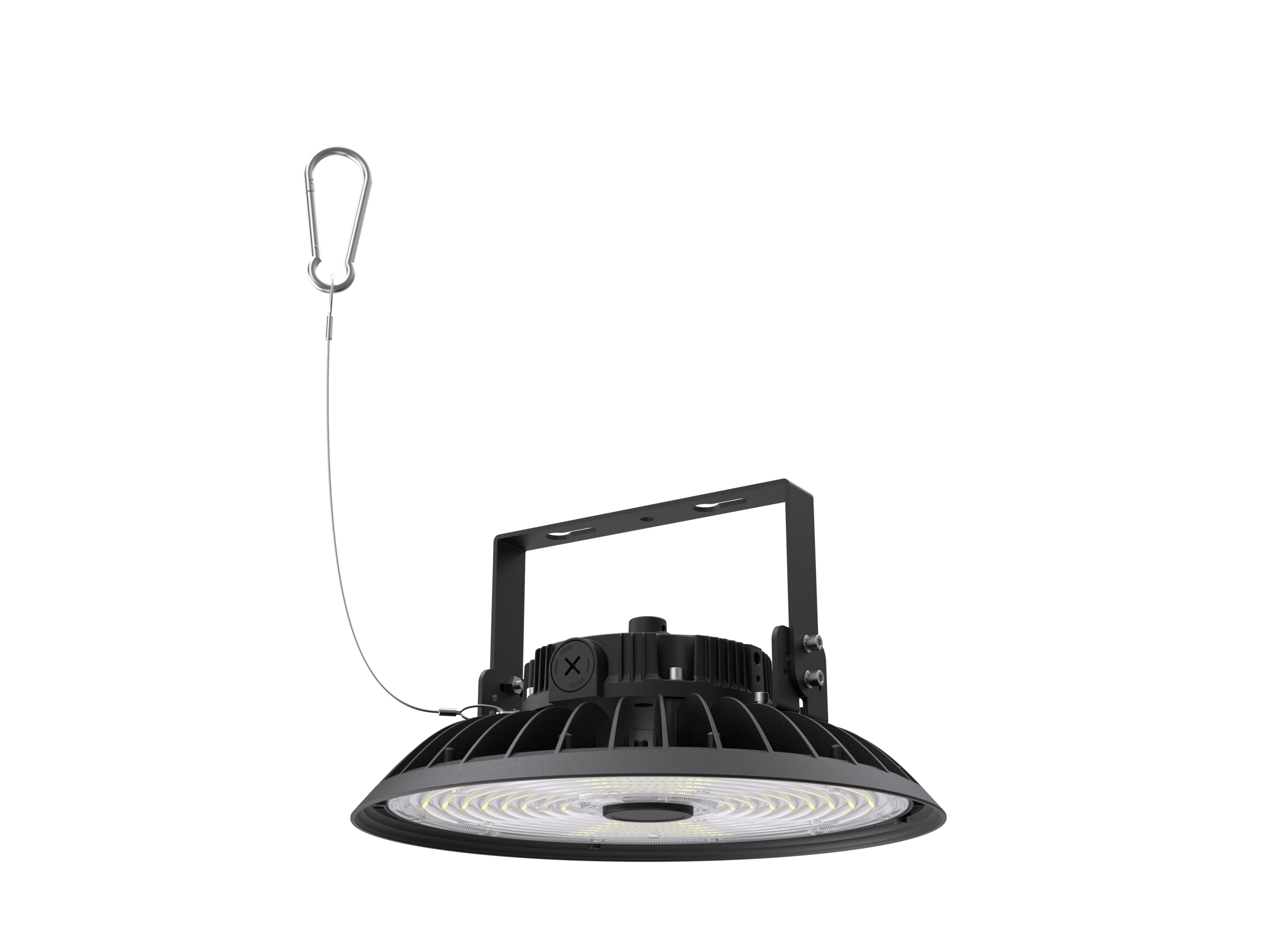

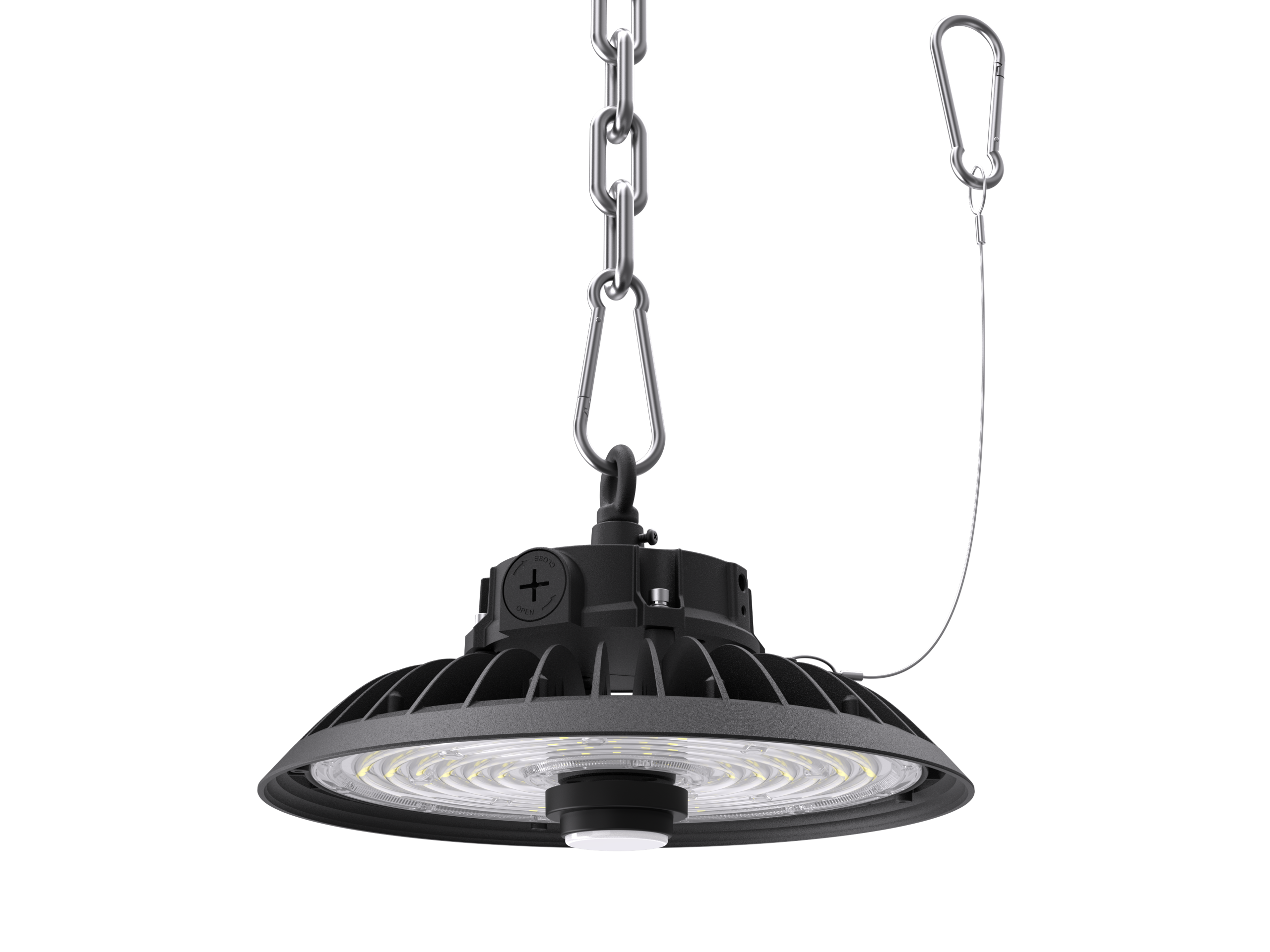

Wattage Available 150W / 240W / 300W Mounting Hook mount, U-Bracket mount, and pendant installation conduit
Lumen From 10,000 – 36,000 lm Operating Temp -40°F to 113°F (-40°C to 45°C)
CCT  Selectable 4000K / 5000K / 5700K Finish Color  Black polyester powder
CRI Above 70+ Listings    UL, FCC

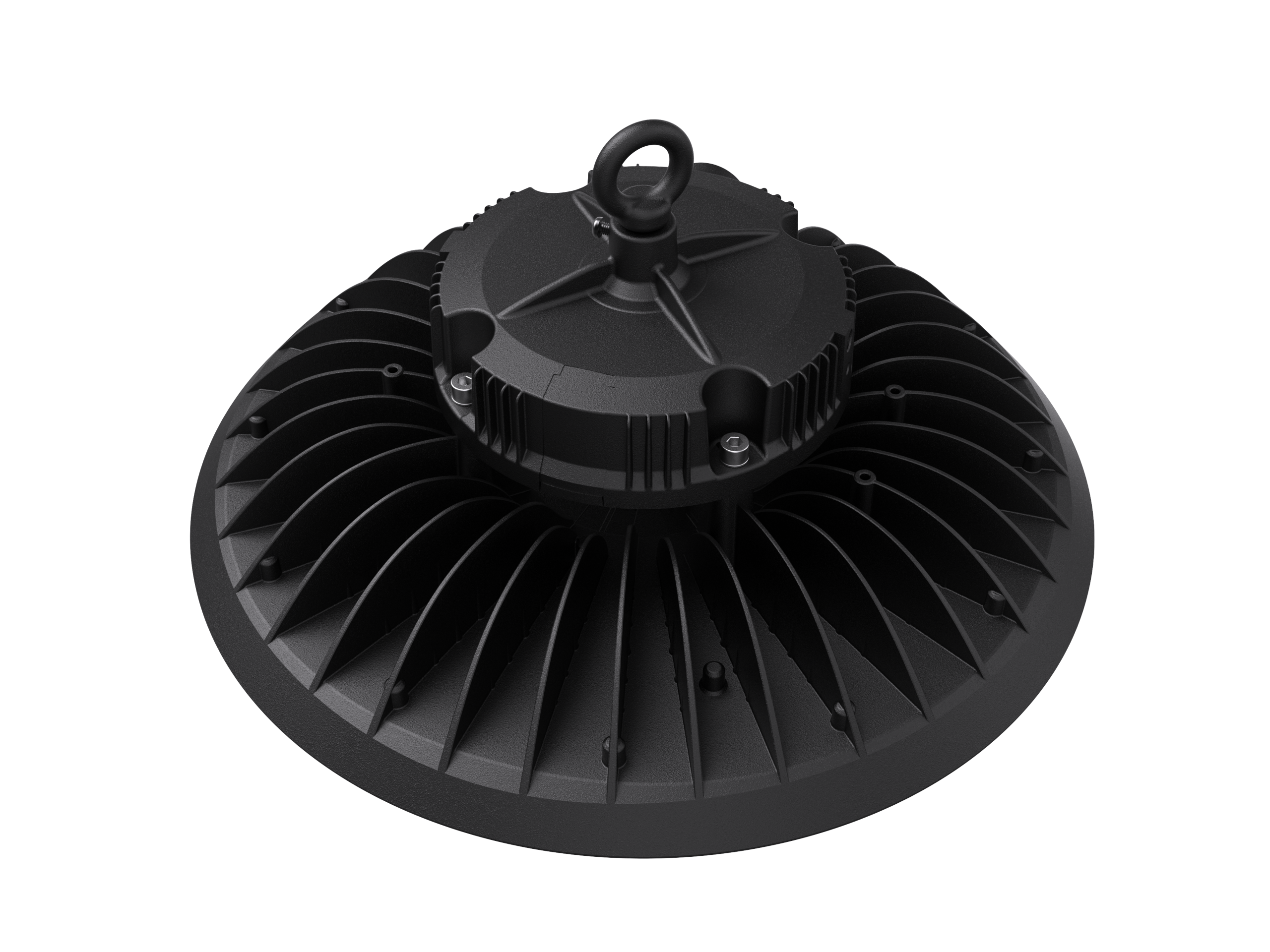

Housing Sealed die-cast aluminum housing Warranty  5 Year limited warranty
Accessories  External sensor/emergency battery



SPEC SHEET

Installation Guide

11/02/2024

Photometry

UHB4 - 150W

11/02/2024

11/02/2024

UHB4 - 210W

11/02/2024

11/02/2024
