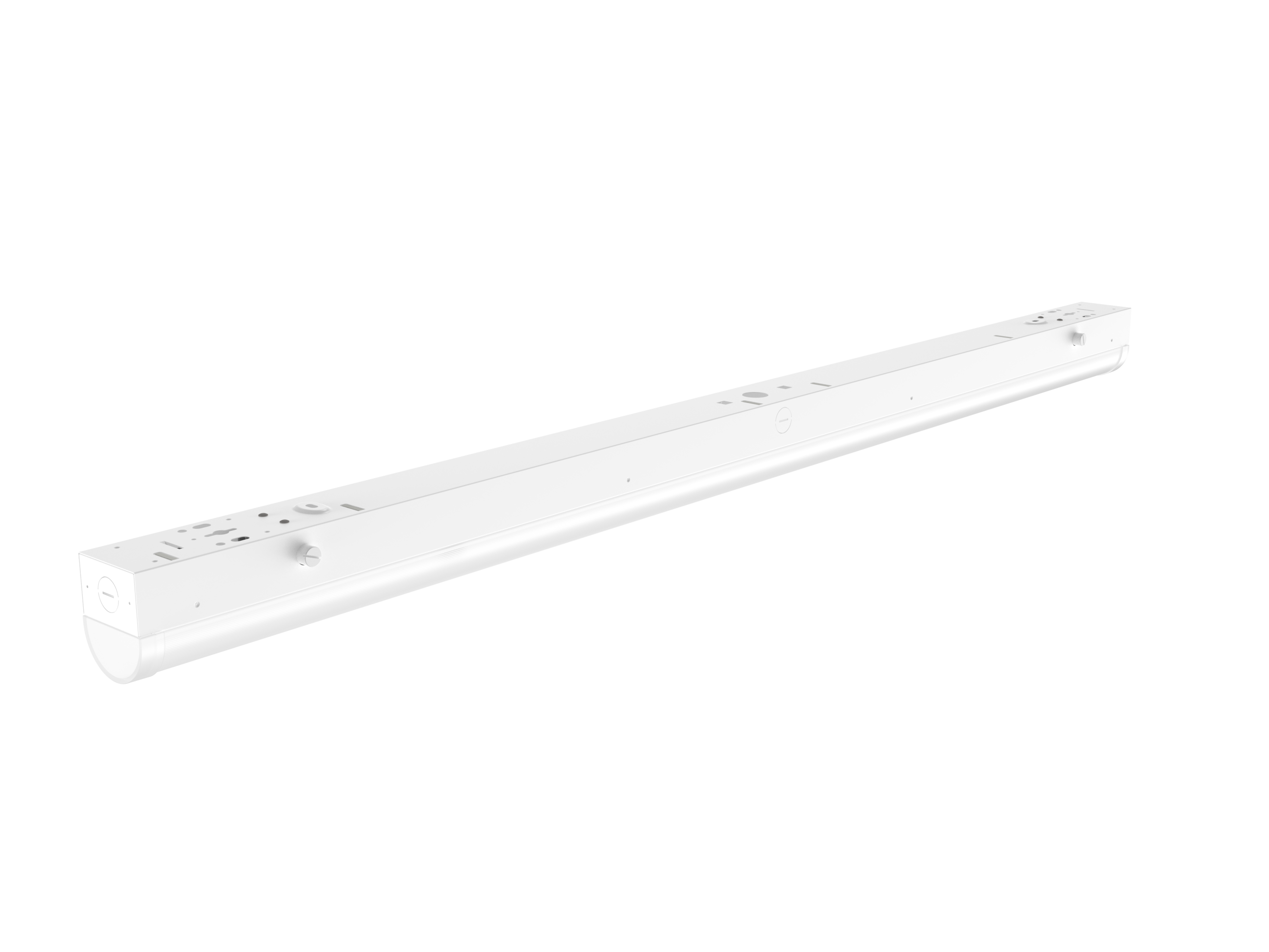

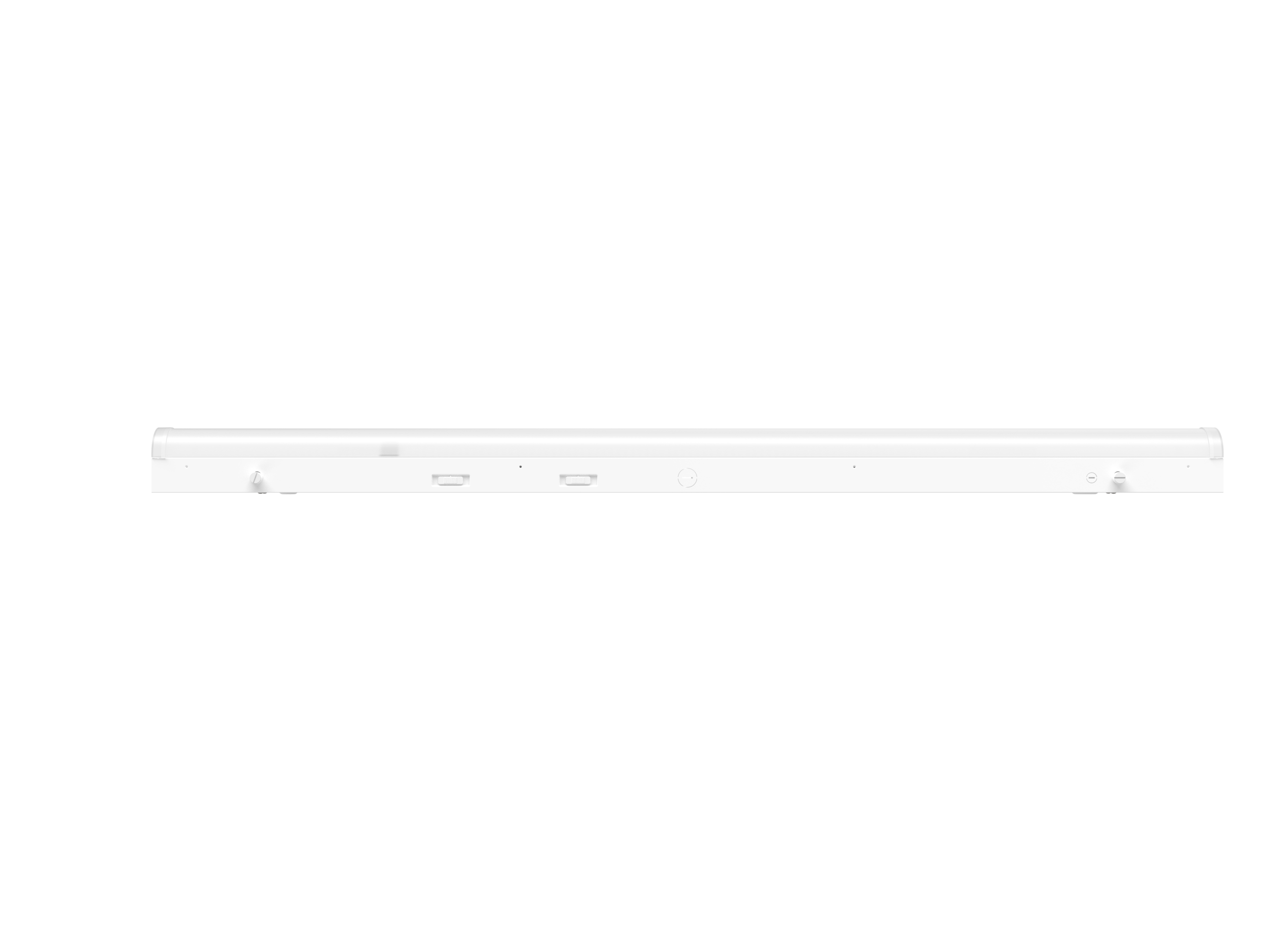

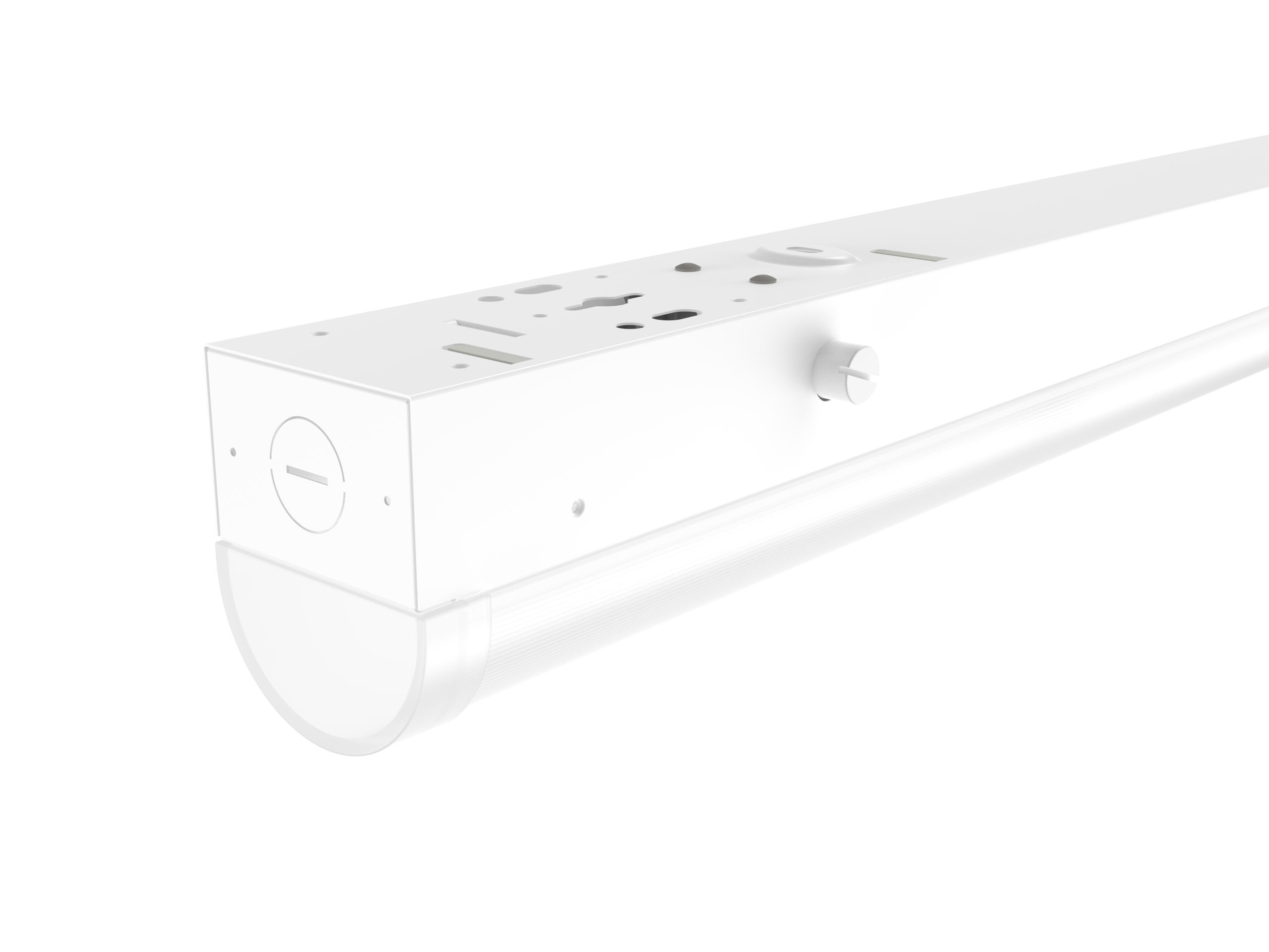

TSPL02 Selectable Strip Light 8FT

  • etl-logo
  • fcc-logo-black-2020-large
  • ChatGPT Image Apr 14, 2025, 05_10_41 PM
  • ChatGPT Image Apr 11, 2025, 02_51_07 PM
  • ChatGPT Image Apr 11, 2025, 02_56_18 PM

The TSPL02 strip linear fixture series provides aesthetic and performance choices, integrated controls options and innovative mounting accessories ideal for commercial, retail, manufacturing, warehouse, cove and display applications. When paired with occupancy sensors, dimming and intuitive controls, you save energy and extend the life of the fixtures. TSPL02 includes a total of seven power level adjustment options ranging from 20 to 80W; CCT supports five adjustable color temperatures of 3000K, 3500K, 4000K, 5000K, and 6500K.

  • Multiple lumen packages
  • CCT selectable 3000K, 3500K, 4000K, 5000K, 6500K
  • Universal 120-277V input voltage
  • Surface
  • Suitable for damp locations

Document

TSPL1-Series-LED-Selectable-Strip-Linear-Light.pdf

Download

Specifications

Series
TSPL2 Selectable Strip Light
Accessories
Emergency backup battery
Wattage
Selectable 20W / 25W / 30W / 35W  / 40W   Selectable 40W / 50W / 60W / 70W / 80W Mounting Surface mounting options
Lumen
From 2,800 – 11,200 lm
Voltage Rating
Standard 120-277V
CCT
Selectable 3500K, 4000K, 5000K
Optics
Frosted acrylic lens
Size
4ft, 8ft
Finish
White Polyester Powder coat
CRI
Above 80+
Listings
UL Listed for damp locations
Housing
Aluminum body
Warranty
5 Year limited warranty

SPEC SHEET

Installation Guide

06/02/2024

Photometry

TSPL2 - 4FT

13/02/2024

TSPL2 - 8FT

13/02/2024
