PT2 Selectable Post Top Light 130W BZ

  • ul
  • bg-5-yr-warranty-logo
  • Screenshot 2023-09-14 151420
  • screenshot_2023-04-16_at_9

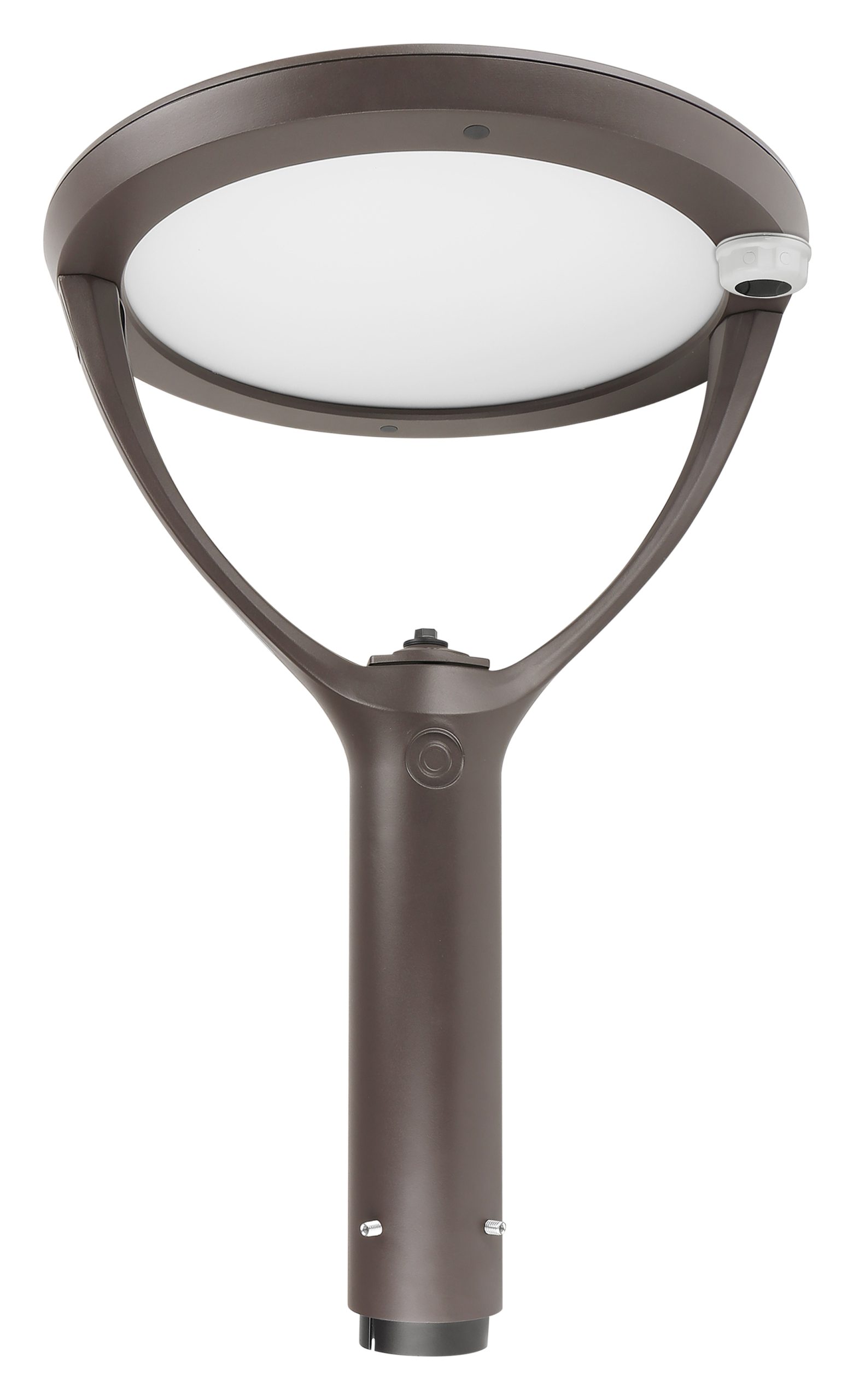

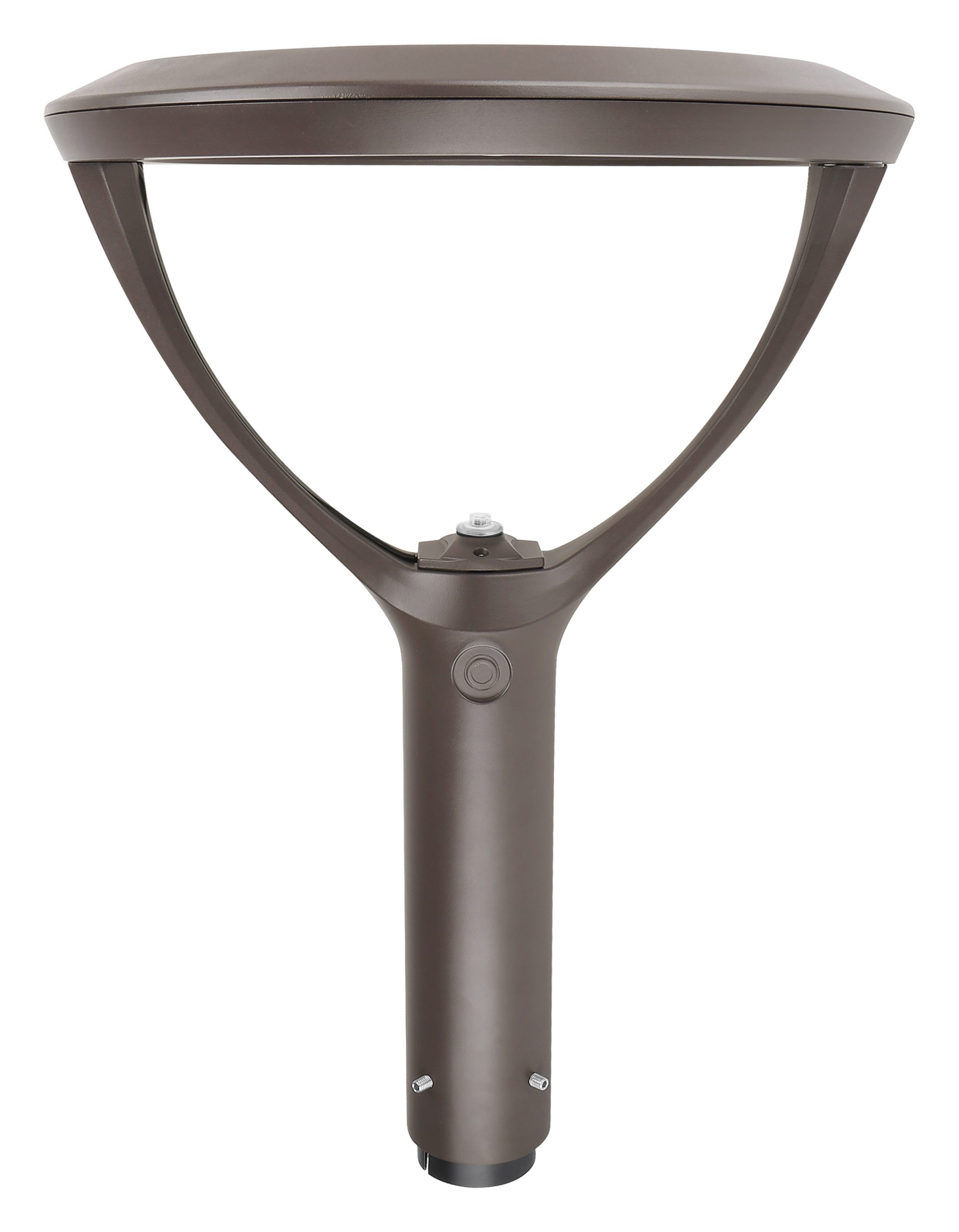

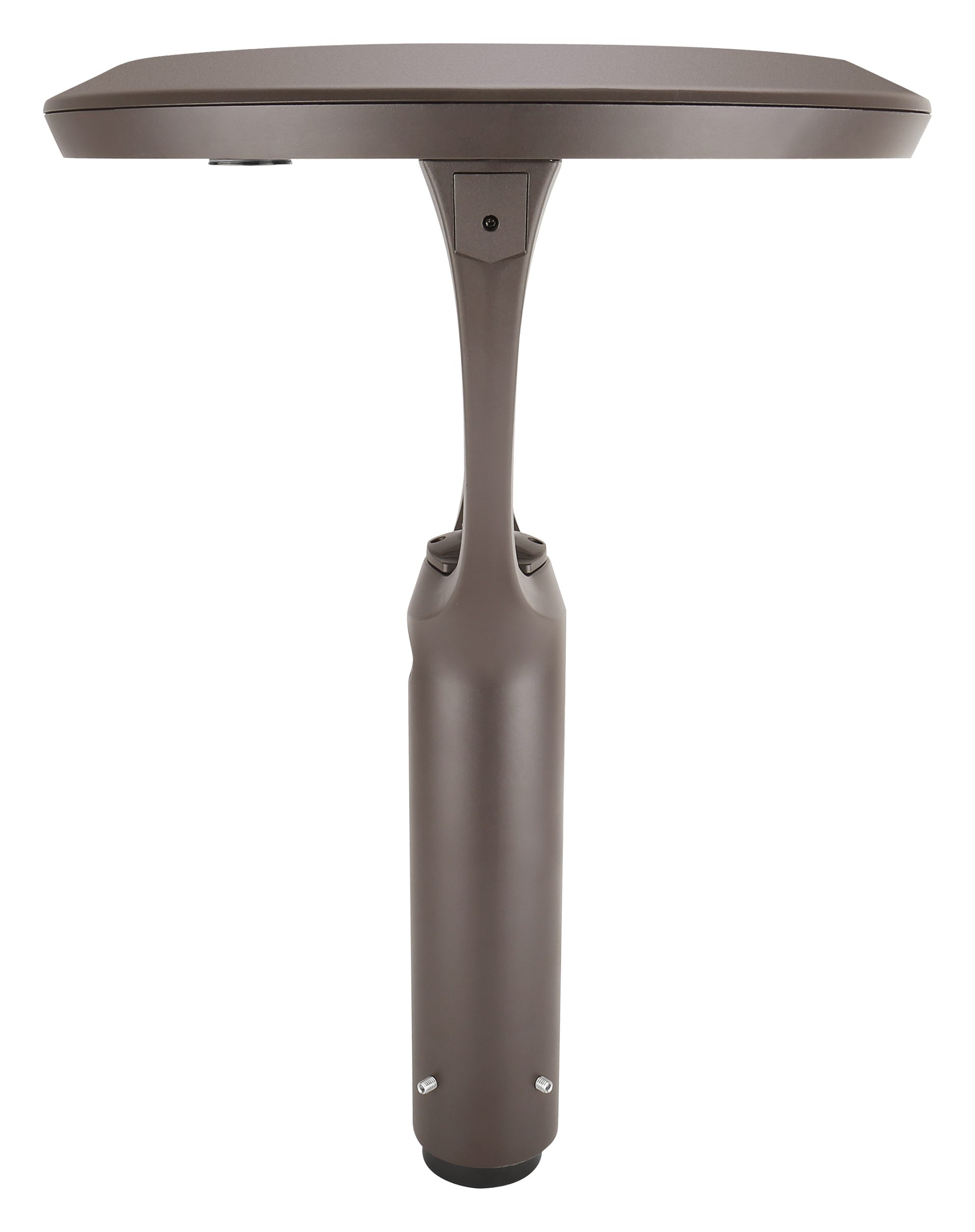

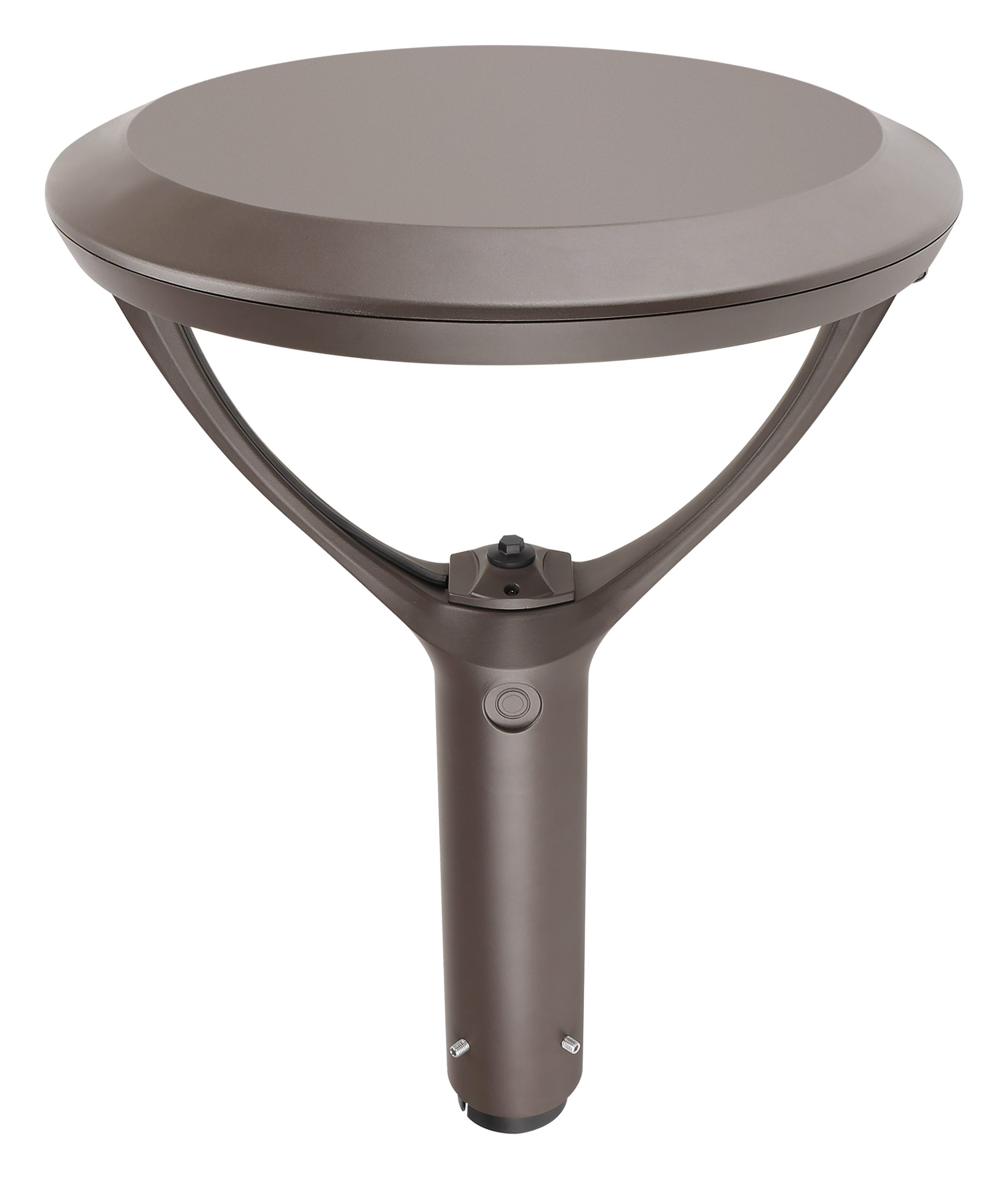

The selectable post top provides a unique, scalable lighting solution targeted for 8’ to 20’ mounting heights. Its design brings proportion to parking lots, drive lanes, entrances, building perimeters, and pathways. The excellent optical design that deliver the smooth light with a very good uniformity. The structure is clean and more popular, promotes harmony between the outdoor lighting and architecture.

  • Lumen range from 5,400 – 15,800 lm
  • CCT selectable 3000K, 4000K, and 5000K
  • -40°F to 113°F operating range
  • Universal 120-277V input voltage
  • Dark bronze polyester powder
  • Five-year warranty

Document

PT2-Tunable-Post-Top-Light.pdf

Download

Specifications

Series    PT2 Selectable Post Top light Voltage Rating    Standard 120-277V
Wattage 45W / 70W / 87W / 130W Operating Temp -40°F to 113°F (-40°C to 45°C)
Lumen 5,400 – 15,800 lm Finish Color  Dark bronze and White polyester powder
CCT  Selectable 3000K, 4000K, 5000K IP Rating  IP65
CRI Above 70+ Listings    UL
Housing Die-cast aluminum housing Warranty  5 Year limited warranty



SPEC SHEET

Installation Guide

22/02/2024

Photometry

Product IES Files

22/02/2024

22/02/2024

22/02/2024
