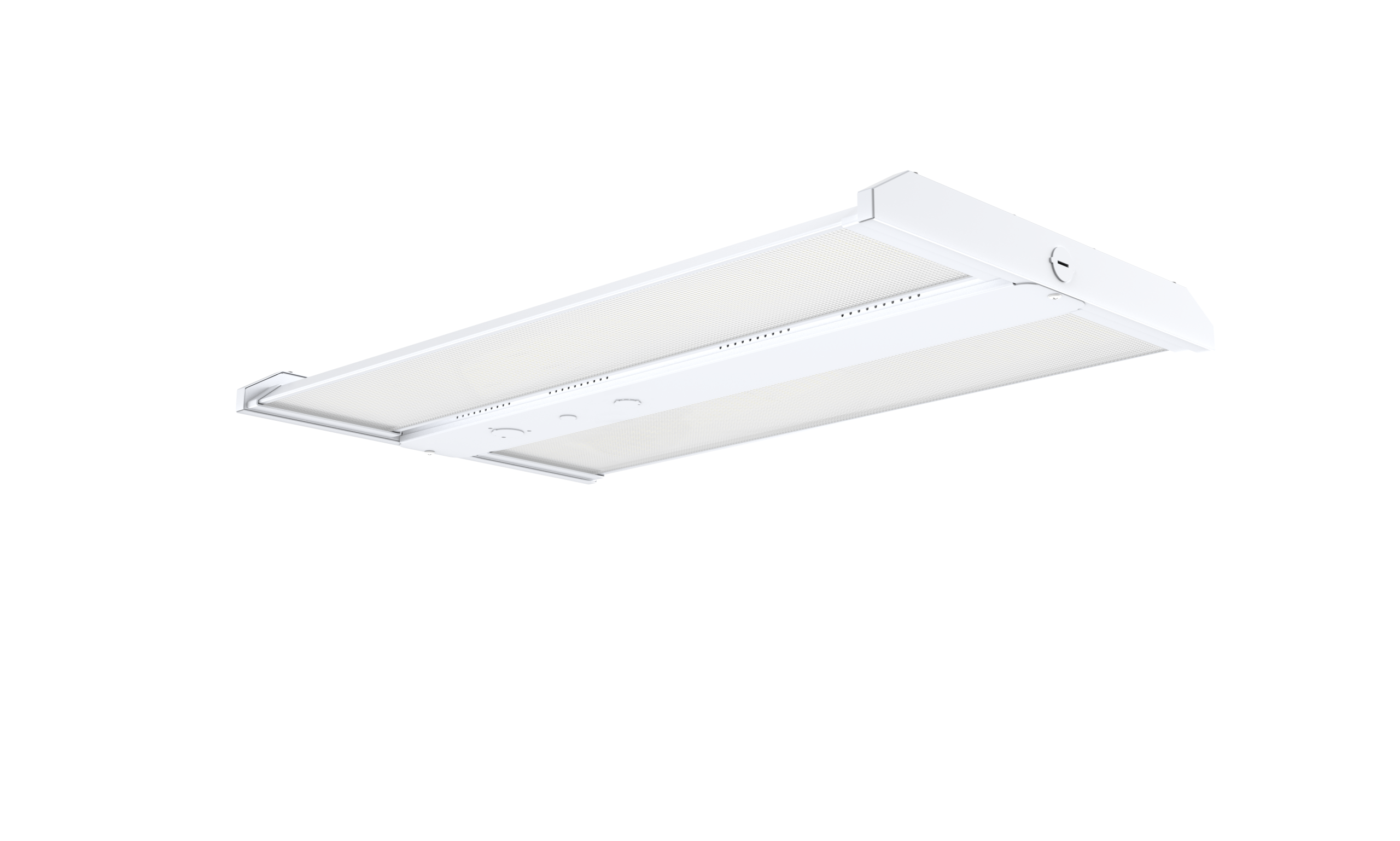

The LHBR2 series is a basic, low-budget warehouse and high-bay lighting fixture. The Dual lens rotates 135 degrees upward. The linear, compact design allows the LHBR2 to maintain a stylish and aesthetically pleasing appearance while maintaining durability and saving up to 66% in energy costs compared to conventional light sources. An excellent thermal management system effectively extends the life of the fixture, making it ideal for warehousing, large indoor spaces, retail, and commercial applications.

  • Lumen range from 7,500 – 45,000 lumens
  • CCT selectable 3000 K, 4000K, 5000K
  • -40°F to 122°F operating range.
  • Universal 120-277V / 277-480V input voltage
  • Motion Sensor / Emergency Battery
  • Five-year warranty

Document

LHBR2-Selectable-Linear-High-Bay-Light.pdf

Download

LHBR2-Installation-Guide.pdf

Download

Specifications

Series    LHBR2 Linear High Bay Light Voltage Rating    Standard 120-277V / 277-480V
Wattage Selectable 50W/60W/70W/90W/110W    Selectable 90W/110W/130W/150W/165W    Selectable 150W/165W/180W/200W/220W Selectable 165W/220W/255W/275W/300W Mounting Cable Suspending, Surface, Pendant Mounting
Lumen From 7,500 – 45,000 lm Lens Frosted diffuser polycarbonate lens
CCT  Selectable 3000K, 4000K, 5000K Operating Temp -40°F to 122°F (-40°C to 50°C)
CRI Above 70+ Finish Color  White polyester powder
Housing Aluminum alloy Listings    UL, FCC
Accessories  Motion sensor/emergency battery Warranty  5 Year limited warranty
