GPC Selectable Canopy Light 80W

  • black - no background_2x
  • fcc-logo-black-2020-large
  • ChatGPT Image Apr 14, 2025, 05_10_41 PM
  • ChatGPT Image Apr 14, 2025, 05_17_46 PM
  • ChatGPT Image Apr 14, 2025, 05_21_43 PM
  • ChatGPT Image Apr 14, 2025, 05_23_01 PM

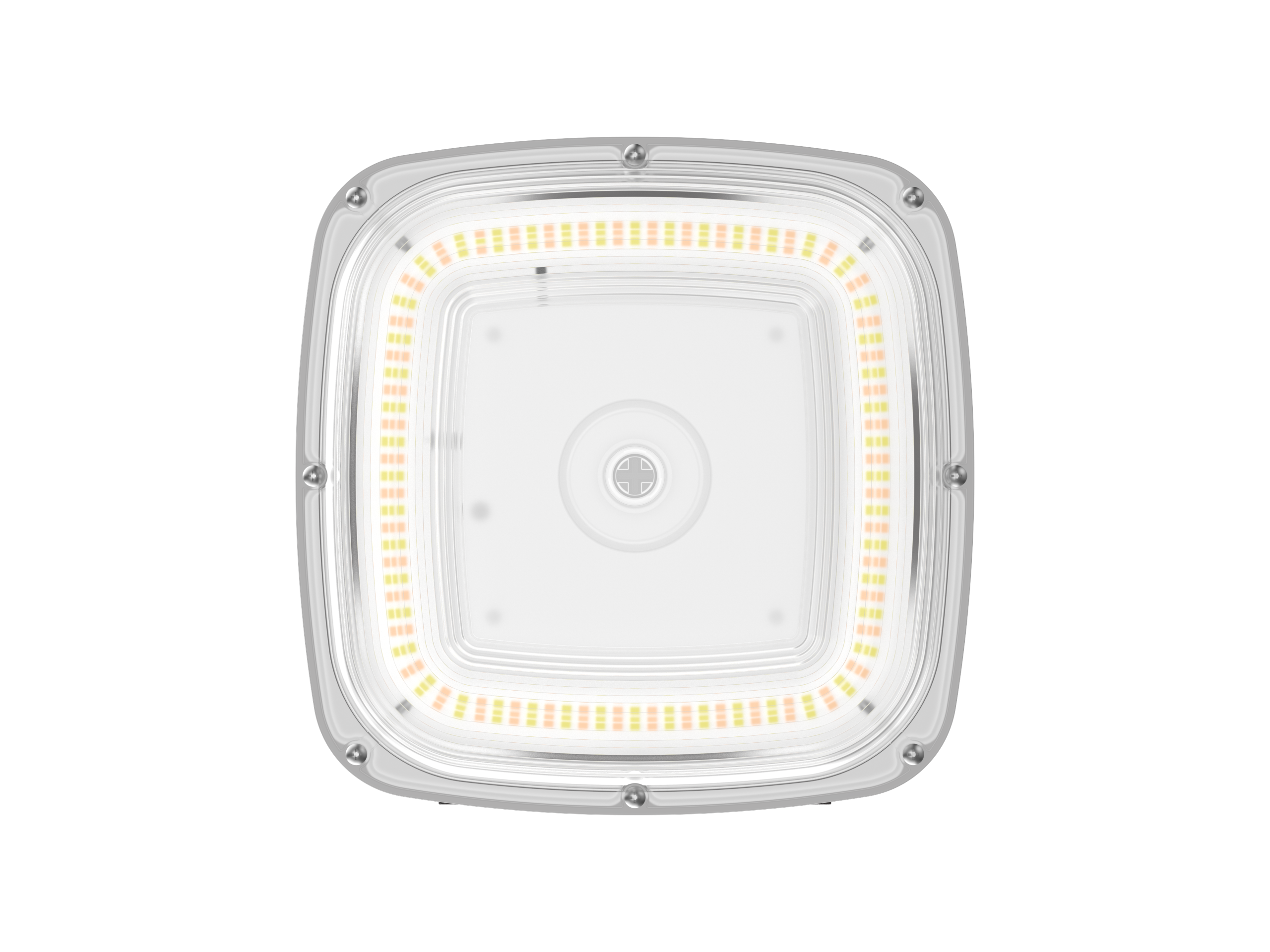

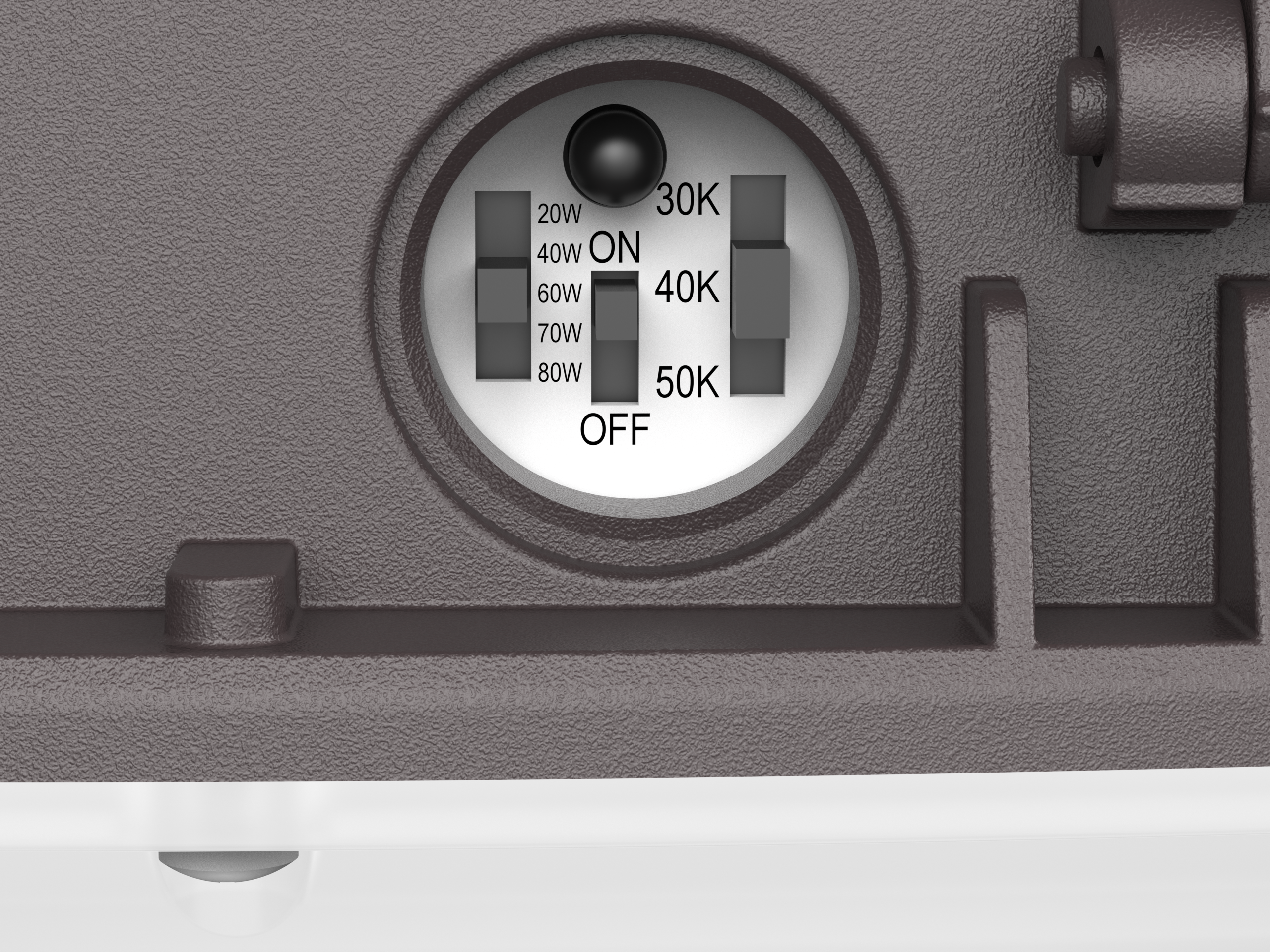

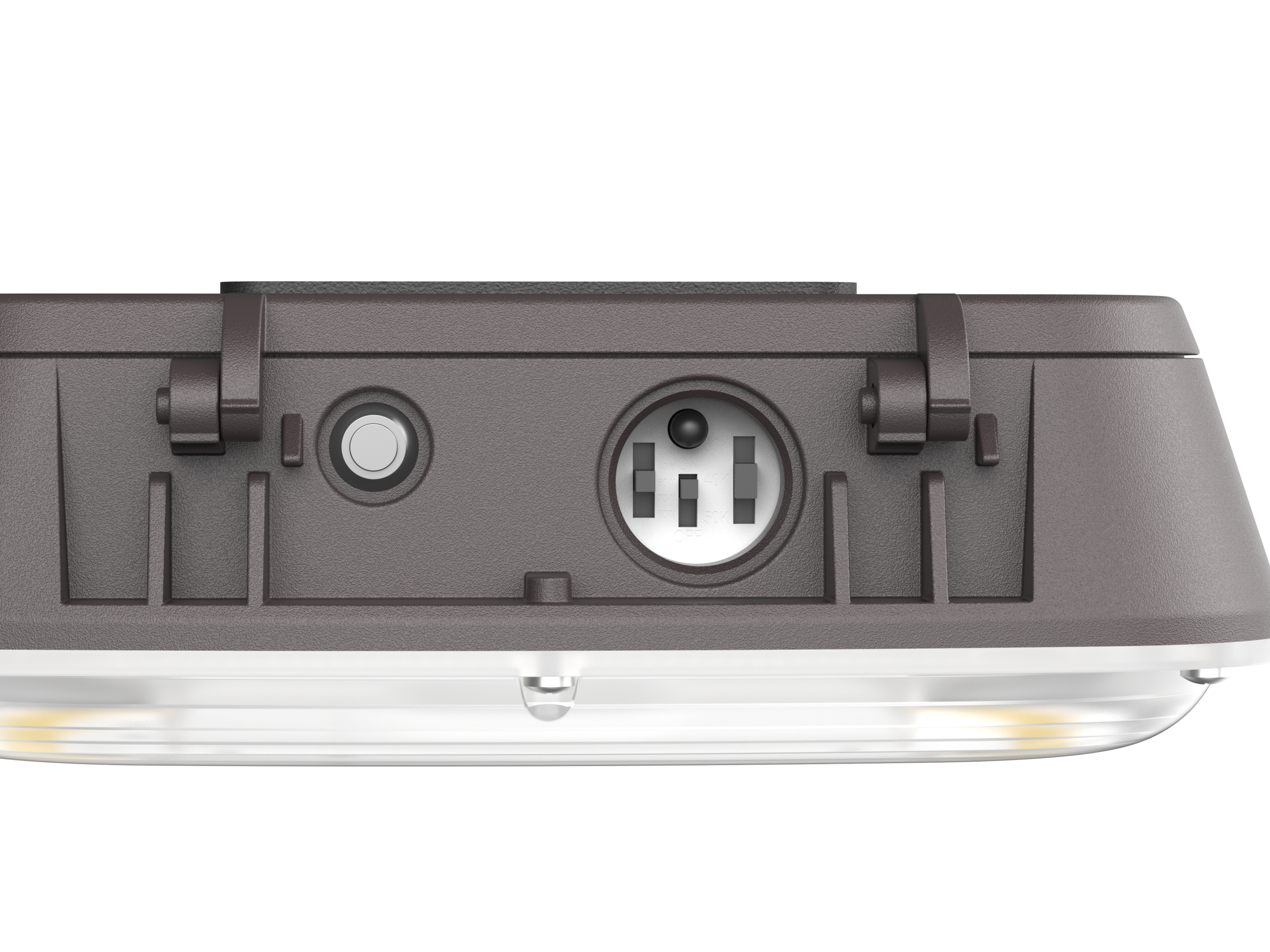

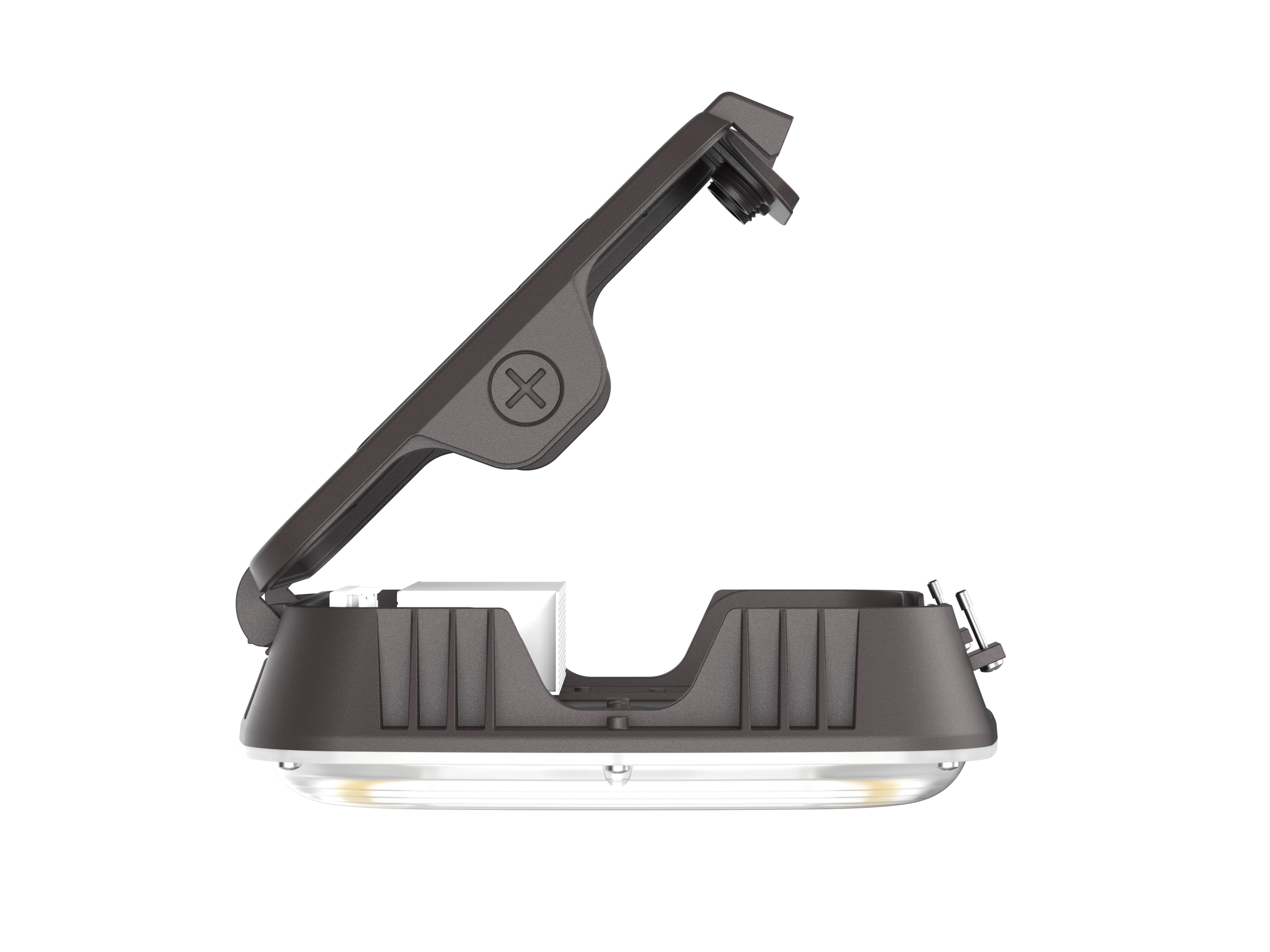

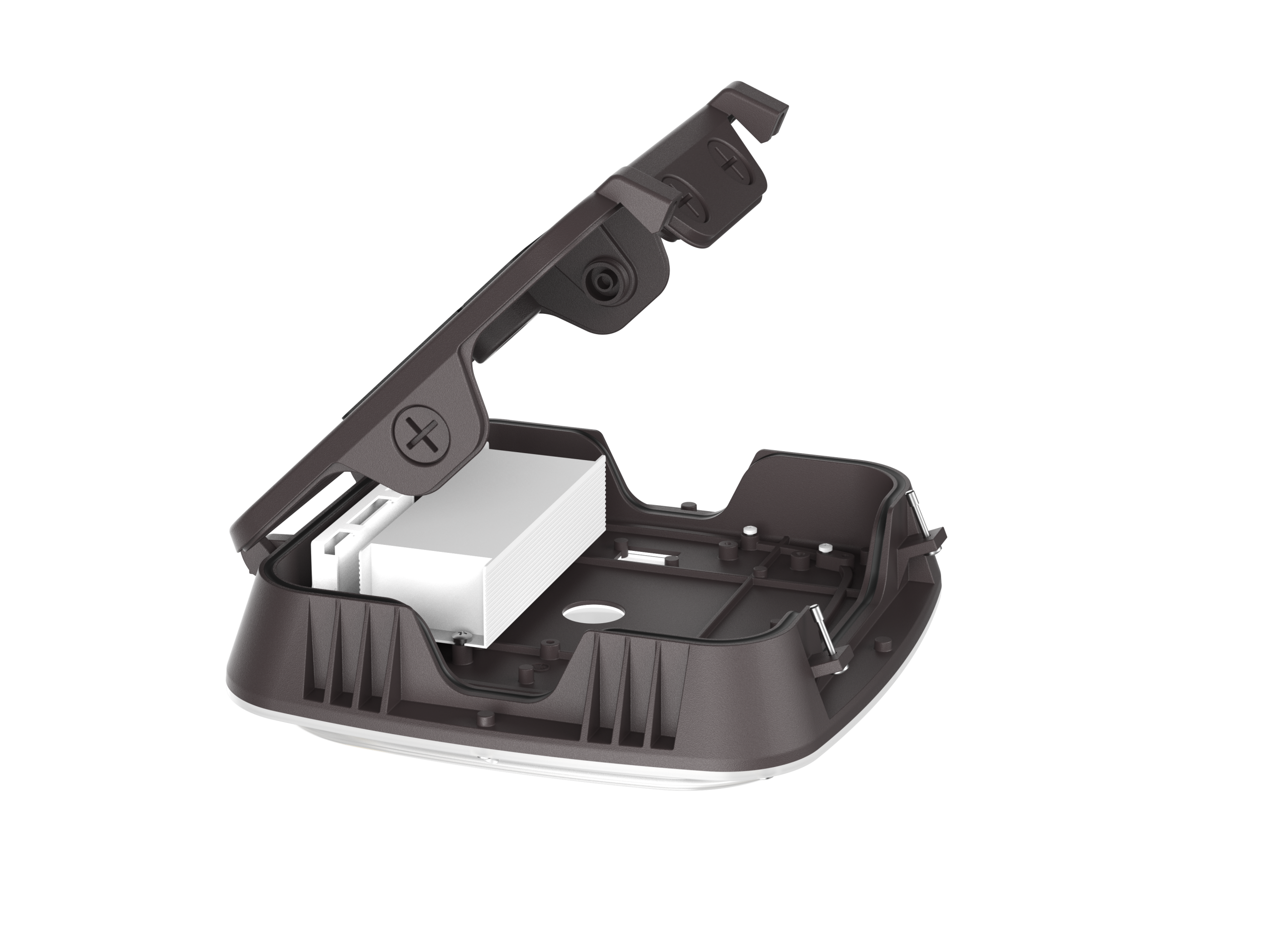

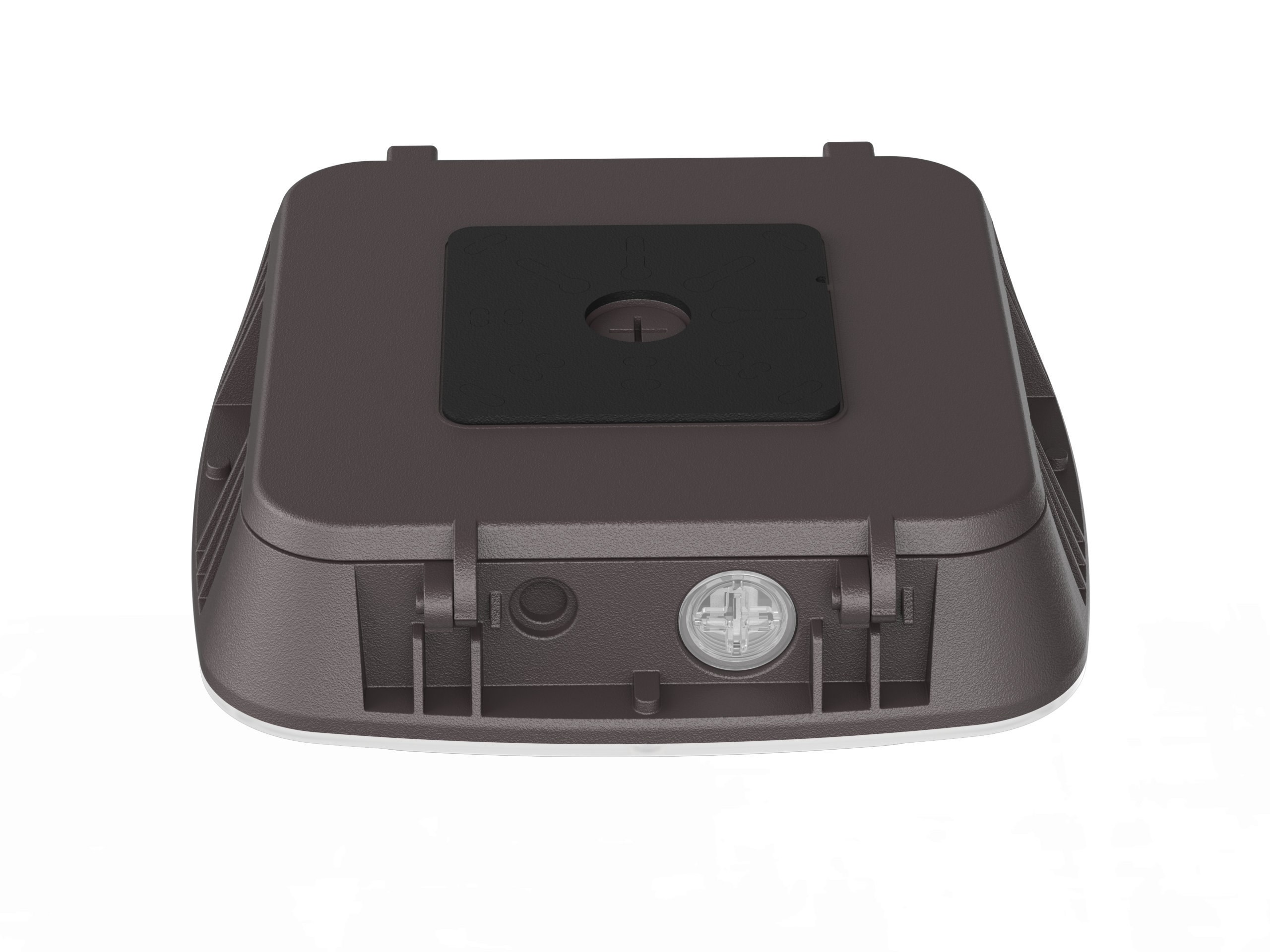

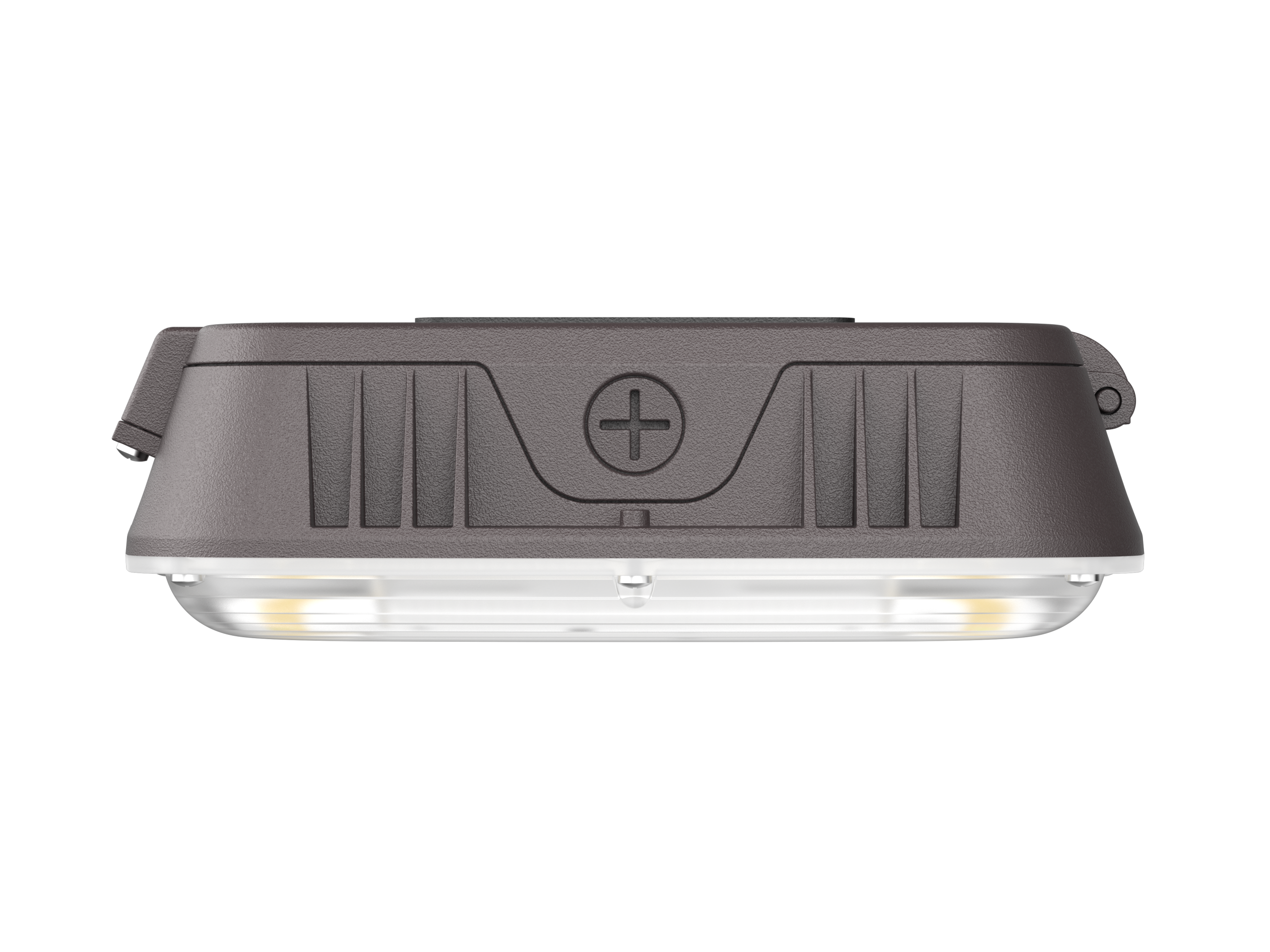

GPC is a cost-effective, energy-efficient LED luminaire for surface-mount applications in commercial buildings, retail and educational facilities. The thin and lightweight design and excellent heat dissipation of the housing extend its life. A precision-engineered optical lens reduces glare, improves optical performance, and provides comfortable illumination. The GPC comes with an external quick-mount plate for standard J-BOX mounting and is also compatible with 3/4″ pendant fixtures. It features 1/2″ knock-out holes on four sides, making it suitable for surface conduit wiring installation. The GPC also supports five lumen packages (100%, 80%, 60%, 40%, 20%) and three CCTs (3000K, 4000K, 5000K).

  • Lumen selectable range from 3,000 – 12,000 lumens
  • CCT selectable 3000K, 4000K, and 5000K
  • -40°F to 113°F operating range.
  • Universal 120-277V input voltage
  • Plug-and-Play Motion Sensor / Emergency Battery
  • Five-year warranty

Document

GPC-Selectable-Canopy-Light.pdf

Download

Specifications

Series    GPC Canopy light Voltage Rating    Standard 120-277V
Wattage Selectable 20%/40%/60%/80%/100% Mounting Surface mounting with J-Box or Pendent mount with conduit.
Lumen Selectable 3,000 – 12,000 lm Operating Temp -40°F to 113°F (-40°C to 45°C)
CCT  Selectable 3000K, 4000K, 5000K Finish Color  Dark bronze polyester powder
CRI Above 70+ IP Rating  IP65
Housing One-piece die-cast aluminum housing with integral heat-sink fins Listings    UL, FCC
Accessories  External sensor/emergency battery Warranty  5 Year limited warranty



SPEC SHEET

Installation Guide

11/02/2024

Photometry

60W 3000K

11/02/2024

11/02/2024

11/02/2024

60W 4000K

11/02/2024

11/02/2024

11/02/2024

11/02/2024

60W 5000K

11/02/2024

11/02/2024

11/02/2024

11/02/2024
